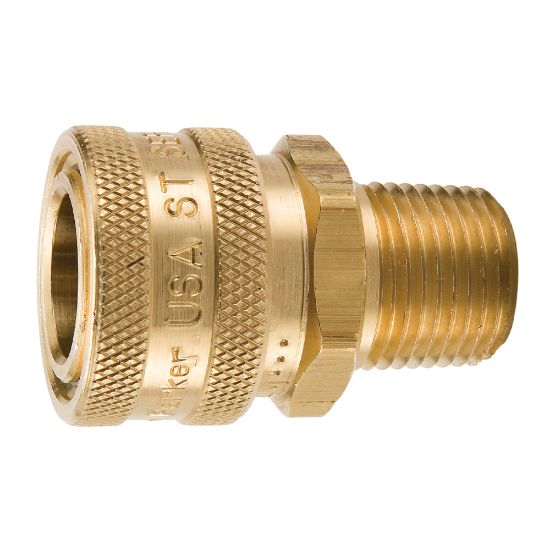

Parker BST-3MY - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BST-3MY

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Hex Size	1 inch
Maximum Operating Temperature	400 °F	Product Type	Push to Connect
Seal Material	Fluorocarbon	Application	Hydraulics
Valve Type	Unvalved	Flow Rate	12 Gal/min
Minimum Operating Temperature	-15 °F	Body Material	Brass
Body Material	BRASS	Connection Thread Size (inch)	3/8 - 18
Body Size (inch)	3/8	Maximum Operating Pressure	2700
Coupling Half	Female Coupler	Connection Type	Male NPTF
