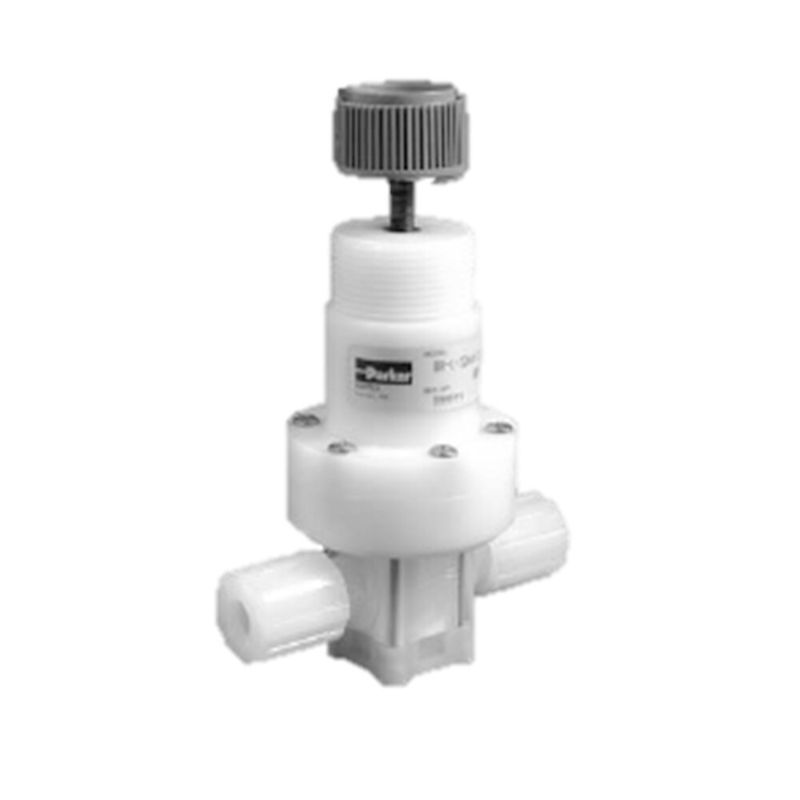

Parker BR-1-2264-2 - UHP PTFE Fluoropolymer Back Pressure Regulator (1/4 inch) – BR-1 Series

The BR-1 Series PTFE Back Pressure Regulator offers high cycle life and excellent resistance to corrosion. Its non-relieving design requires a 10 psi differential across the valve, thus ensuring stable upstream pressure in aggressive fluid applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BR-1-2264-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Fluid Temperature	-17	Wetted Material	PFA, Modified PTFE
Division	Veriflo Division	Maximum Operating Pressure	120 psig (8.3 bar)
Maximum Fluid Temperature	130	Port 2 Size	1/4" Parflare
Minimum Ambient Temperature	-17	Non-Wetted Material	ABS, Brass, SS, PVDF, SS Spring, Chrome Vanadium Die Spring, HDPE
Maximum Ambient Temperature	66	Port Connection 1 (inch)	1/4" Parflare
Nut Material	PVDF	Pressure Range	0-60 psig (Secondary Pressure)
