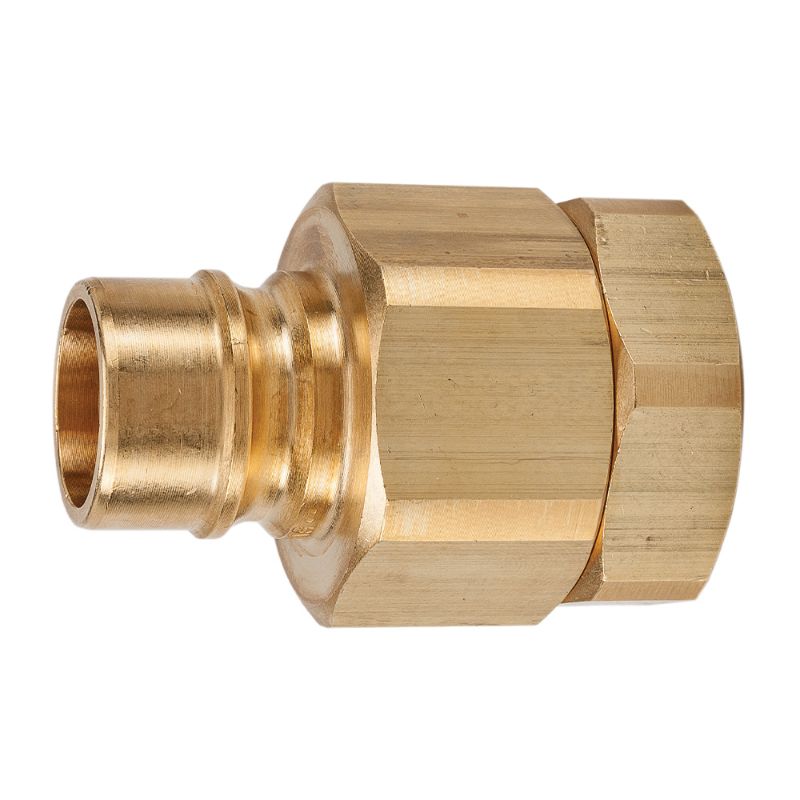

Parker BPHN4-4F - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Quote Required
Partner Available:	74 In Stock

Brand Parker

Part No. BPHN4-4F

$8.63

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-40
Product Type	Manual Connect	Application	General Purpose
Plating Type	n/a	Dimensional Weight	0.01335431654676259
Division	Quick Coupling Division	Hex Size	0.88
Maximum Operating Temperature	250	Seal Material	Nitrile
Valve Type	Unvalved	Body Material	Brass
Valve Type	Unvalved	Coupling Half	Male Nipple
Connection Thread Size (inch)	1/4 - 18	Body Size (inch)	1/4
Connection Type	Female NPTF	Body Material	BRASS
Maximum Operating Pressure	2250
