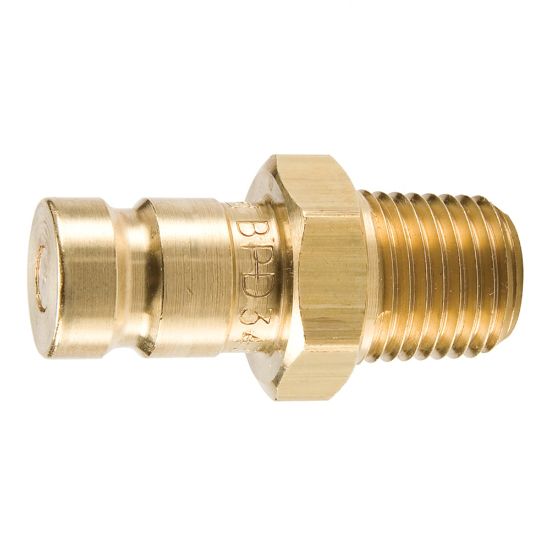

Parker BPD323Y - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BPD323Y

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-15 °F	Specifications Met	SAE J1502 / ISO 15171-1
Division	Quick Coupling Division	Plating Type	na
Maximum Operating Pressure	300 psi	Body Size	1/8 inch
Maximum Operating Temperature	400 °F	Product Type	Push to Connect
Body Material	Brass	Seal Material	Fluorocarbon
Valve Type	Non-spill	Application	Diagnostic
Hex Size	0.63 inch	Flow Rate	0.8 Gal/min
Tube Size (inch)	na	Coupling Half	Male Nipple
Connection Thread Size (inch)	1/8 - 27	Connection Type	Male NPTF
