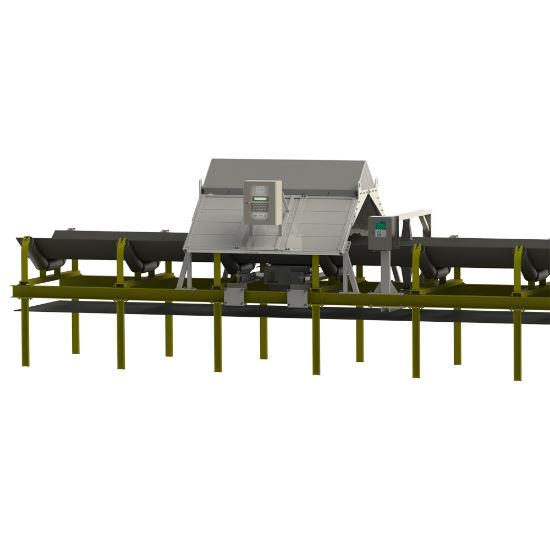

Picture of Parker BM0810 - Conveyor Belt Ash & CV Instrument Analyser - Heat Eye Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker BM0810 - Conveyor Belt Ash & CV Instrument Analyser - Heat Eye Series

This product is no longer available – please contact us for further assistance.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. BM0810
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
HeightCustomDivisionInstrumentation Products Division
Inputs/Outputs0.4-2.0 VProduct TypeMaterial Analyzers
WeightDry: 3307 lbCycle Time1 - 8 m/sec
Operating Temperature0 to 40 °CMaterials of ConstructionShield: Lead
Specifications MetOver conveyor shieldAdditional OptionsRemote monitoring link and software, moisture meter, belt weigher
BrandBretby GammatechWeight (per unit of measure)No upper limit. Mass loadings of <25 kg/m should be avoided kg/m
Communication InterfaceFibreOperating SpeedNo limit (usually 1 - 8 m/sec) m/sec
Input Voltage85-264 VACBody MaterialLead
Training TypeOperation and maintenanceProduct StyleConveyor Belt Instrument Analyser
WidthCustom to conveyor stringers. No limit (usually 800 - 1400 m)DivisionInstrumentation Products Division
Electrical Requirements85-264 VACTechnologyProcess Control
LengthCustomAlarm TypeVia local processor at conveyor or the remote software EyeGraffix
Accuracy+/- 1-3% run of mineApplicationCoal quality measurement
Sensor TypeCsl (Tl) Scintillation Crystal and Photo Multiplier tubeOperating Humidity5 to 95% relative humidity (non-condensing)
Number of Outputs2 user configurable analogue outputs of any measured or calculated parameter (4-20mA) and 4 configurable digital outputs for alarm/status condition indication. MODBUS over etherent for SCADA systemsWarranty12 months from installation or 18 months from despatch whichever comes sooner
Sensing MethodNatural Gamma Radiation DetectionIndustryMining
