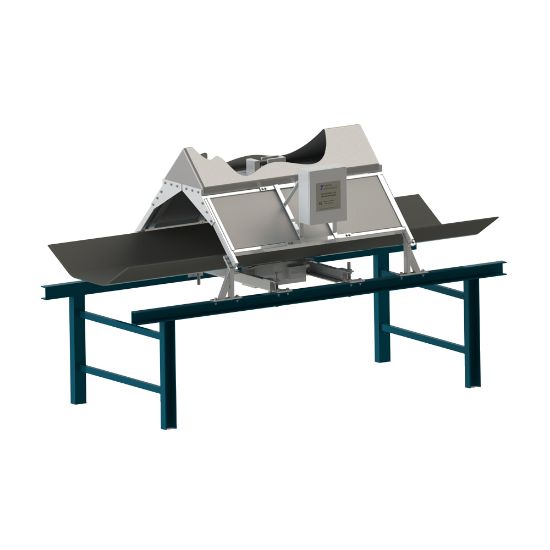

Parker BM0800 - Conveyor Belt Ash Instrument Analyser - Ash Eye Series

This product is no longer available – please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BM0800

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Cycle Time	Conveyor speed range: usually 1 - 8 m/sec (no limit)	Operating Temperature	14 to 104 °F
Length	Custom	Technology	Process Control
Operating Humidity	5 to 95% relative humidity (non-condensing)	Application	Coal quality measurement
Accuracy	+/- 1-3% run of mine	Industry	Mining
Sensing Method	Natural Gamma Radiation Detection	Weight	Dry: 3307 lb
Communication Interface	Fibre-optic ethernet	Height	Custom
Weight (per unit of measure)	No upper limit. Mass loadings of <25kg/m should be avoided kg/m	Product Type	Material Analyzers
Inputs/Outputs	0.4-2.0 V	Product Style	Conveyor Belt Ash Instrument Analyser
Division	Instrumentation Products Division	Width	Custom to conveyor stringers. No limit (usually 800 - 2400 m)
Body Material	Shield: Lead	Brand	Bretby Gammatech
Electrical Requirements	47-440Hz single phase 5A at both the conveyor site and the optional remote display unit site	Operating Speed	No limit (usually 1 - 8 m/sec) m/sec
Specifications Met	Over conveyor shield	Diameter	Custom
Division	Instrumentation Products Division

Product resources

Literature and Reference Materials

Conflow & Bretby Gammatech--Underground & Quarrying Products Catalog--5190-CBG (PDF)
