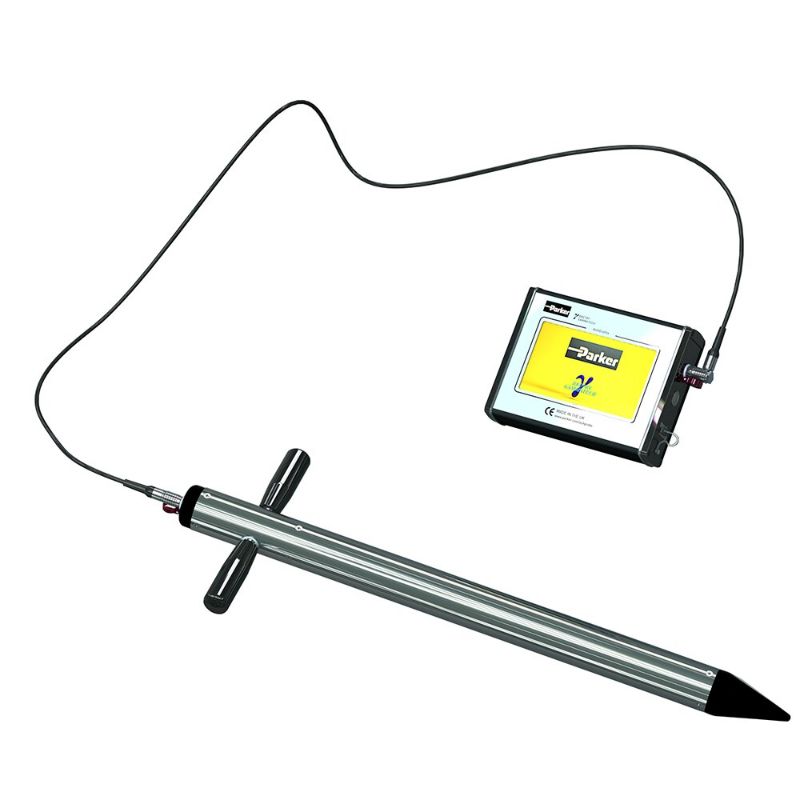

Parker BM0600AENB03 - Portable Ash Instrument Analyser - Ash Probe Series

This product is no longer available – please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BM0600AENB03

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Stainless Steel	Product Type	Condition Monitor
Industry	Mining	Technology	Process Control
Division	Instrumentation Products Division	Division	Instrumentation Products Division
Brand	Bretby Gammatech	Length	760 mm
Application	Coal Ash Quality Monitoring	Product Style	Coal Ash Quality Monitor
Width	Display Unit: 220 mm	Height	Display Unit: 168 mm
Weight	Probe: 2.9 kg	Accuracy	0.3 %
Diameter	Probe: 52 mm	Cable Type	Standard climate cable
Cycle Time	60 second	Tube Length	760 mm
Cable Length	3 m Probe to Display Unit	Sensing Method	Natural Gamma
Safety Features	Non Radiation - Detects Natural Gamma	Specifications Met	IP65 Environmental Rating
Accessories Included	2 x 10 m cables in place of calibration kit	Electrical Connection	EUR
Operating Temperature	-4 to 1022 °F	Tube Outside Diameter	52 mm
Communication Interface	AshGraffix	Materials of Construction	Head: Aluminium
Electrical Connection	EUR	Cable Type	Standard climate cable
Cable Length	3 m Probe to Display Unit	Head Material	Aluminium
Accessories Included	2 x 10 m cables in place of calibration kit

Product resources

Literature and Reference Materials

Conflow & Bretby Gammatech--Underground & Quarrying Products Catalog--5190-CBG (PDF)
