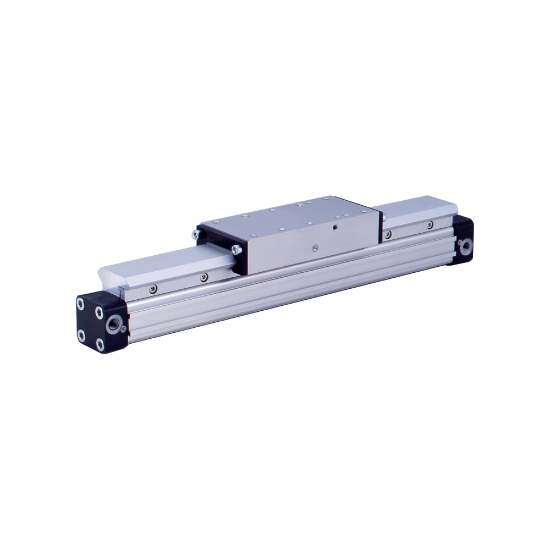

Picture of Parker BL6TSL - Rodless Cylinder(Band type) Model:BL6

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker BL6TSL - Rodless Cylinder(Band type) Model:BL6

The BL6 rodless actuator in bore sizes Ø10 to Ø80mm is a linear actuator, guidance and control package designed into a modular system. Ideally suited for point-to point, reciprocating and simple traverse / transfer applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. BL6TSL
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionTAIYO DivisionTypeExternal guide with Fluorine seal type, basic style.
Speed Range200-2000mm/sTemperature Range (C)0-+110(No freezing)
Pressure Range (MPa)0.15-0.8(φ16), 0.1-0.8(φ25-80)Bore Diameter (mm)16, 25, 32, 40, 50, 63, 80
Related PartsClevis attachment, Turn bracket, Mounting block, Intermediate supportFluid TypeAir
Cushioning Stroke (mm)11(φ16), 17(φ25), 20(φ32), 27(φ40), 30(φ50), 32(φ63), 39(φ80)Port PositionBasic style, Common ports type(φ25-63)
Cushioning TypeAir cushioningLubricationUnnecessary(But possible)
Stroke (mm)2800(φ16-25, Standard maximum stroke), 5800(φ16-25, Fabrication stroke), 2700(φ32-50, Standard maximum stroke), 5700(φ32-50, Fabrication stroke), 2500(φ63-80, Standard maximum stroke), 5500(φ63-80, Fabrication stroke)Stroke Length Tolerance (mm)0-+1.5(0-1500mm), 1501 to 5500mm:0-+2.5(1501-5500mm), 0-+3(5501mm or more)
