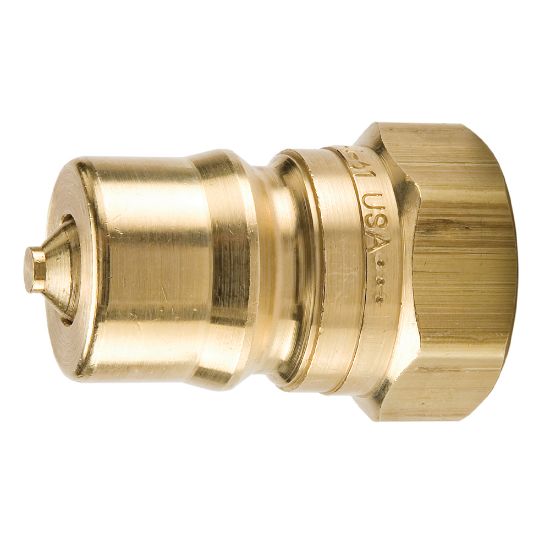

Parker BH8-61-STM - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BH8-61-STM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Vacuum Pressure Rating	-0.9 bar	Maximum Operating Temperature	400 °F
Minimum Operating Temperature	-54 °C	Specifications Met	ISO 7241-1, series B
Product Type	Manual Connect	Flow Rate	50 Gal/min
Valve Material	Brass	Valve Type	Poppet
Plating Type	na	Hex Size	1.62 inch
Division	Quick Coupling Division	Body Material	Brass
Body Material	BRASS	Connection Type	Female NPTF
Seal Material	Ethylene Propylene	Maximum Operating Pressure	1500
Body Size (inch)	1	Application	Steam
Connection Thread Size (inch)	1 - 11 1/2	Coupling Half	Male Nipple
