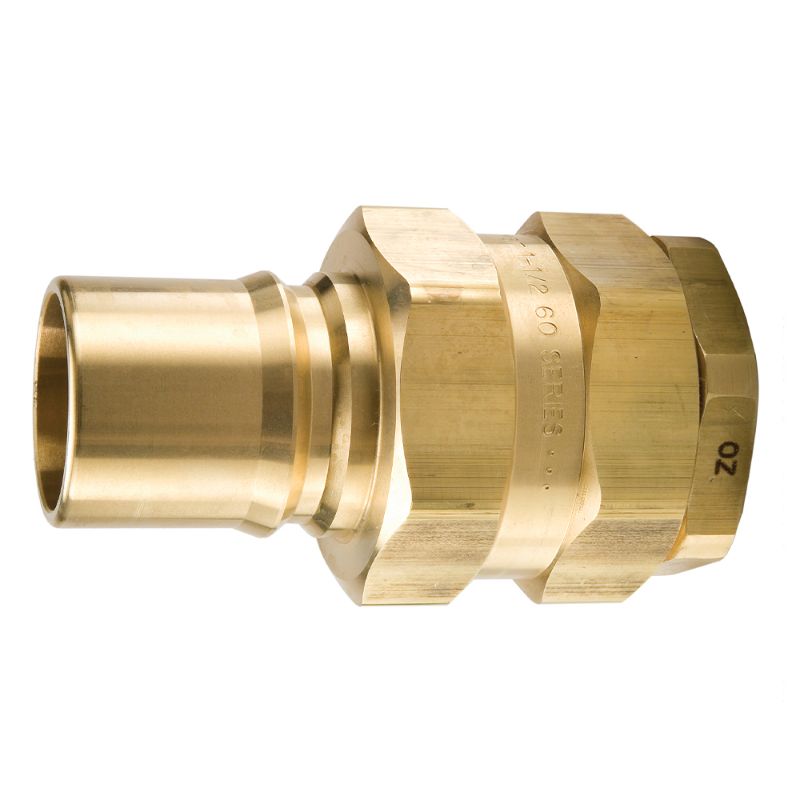

Parker BH2016-61 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BH2016-61

$1,870.87/each

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size	3.75 inch
Vacuum Pressure Rating	n/a	Product Type	Manual Connect
Valve Material	Brass	Valve Type	Poppet
Plating Type	n/a	Division	Quick Coupling Division
Flow Rate	757 L/min	Specifications Met	ISO 7241-1 Series B
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °C
Body Material	Brass	Connection Thread Size (inch)	2 - 11 1/2
Seal Material	Nitrile	Coupling Half	Male Nipple
Body Size (inch)	2 1/2	Connection Type	Female NPTF
Body Material	BRASS	Maximum Operating Pressure	1200
Application	General Purpose
