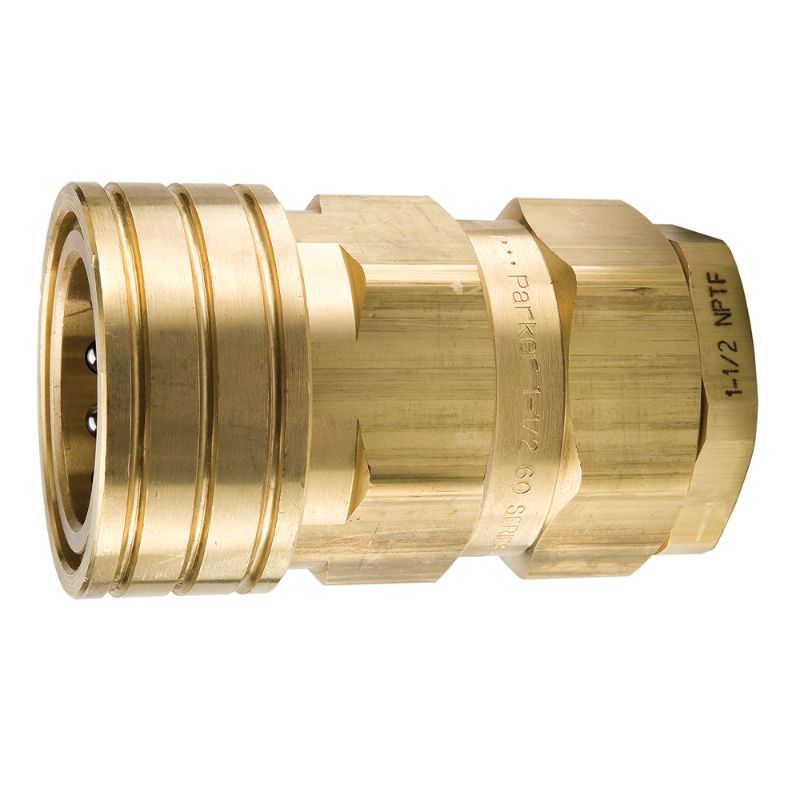

Parker BH2016-60 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BH2016-60

$2,253.12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	121 °C
Valve Type	Poppet	Valve Material	Brass
Plating Type	n/a	Division	Quick Coupling Division
Ball Material	Stainless Steel	Specifications Met	ISO 7241-1 Series B
Flow Rate	757 L/min	Minimum Operating Temperature	-40 °F
Vacuum Pressure Rating	n/a	Product Type	Manual Connect
Hex Size	3.75 inch	Body Material	Brass
Coupling Half	Female Coupler	Seal Material	Nitrile
Body Size (inch)	2 1/2	Maximum Operating Pressure	1200
Connection Type	Female NPTF	Body Material	BRASS
Connection Thread Size (inch)	2 - 11-1/2	Application	General Purpose
