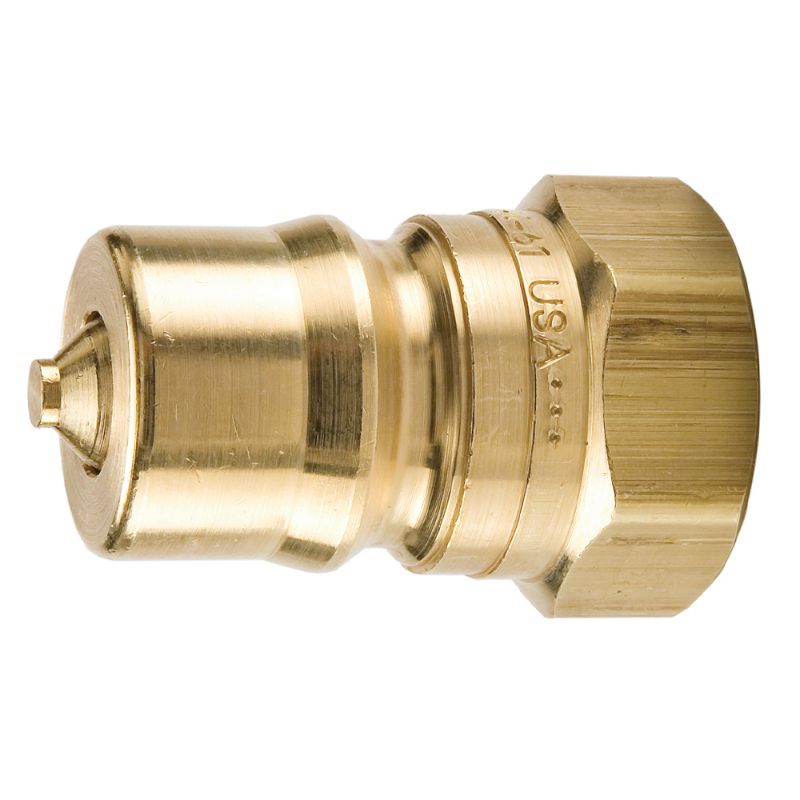

Parker BH2-61 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Name: Parker BH2-61 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
SKU: BH2-61
Price: 20.92 USD
Availability: InStock

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

AFP Availability:

132 In Stock

West Knoxville, TN	45
East Knoxville, TN	35
North Chesterfield, VA	16
Fayetteville, NC	15
Mooresville, NC	8
Jacksonville, FL	7
Richmond, VA	2 (Pickup only)
Ashland, VA	2 (Pickup only)
Johnson City, TN	2 (Pickup only)

Partner Available:

1389 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. BH2-61

$20.92/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.013329336530775381 lb
Vacuum Pressure Rating	-0.9 bar	Valve Type	Poppet
Maximum Operating Temperature	121 °C	Division	Quick Coupling Division
Body Material	Brass	Hex Size	0.75 inch
Product Type	Manual Connect	Plating Type	n/a
Minimum Operating Temperature	-40 °F	Specifications Met	ISO 7241-1 Series B
Flow Rate	3 Gal/min	Valve Material	Brass
Application	General Purpose	Seal Material	Nitrile
Connection Thread Size (inch)	1/4 - 18	Maximum Operating Pressure	3700
Body Size (inch)	1/4	Coupling Half	Male Nipple
Body Material	BRASS	Connection Type	Female NPTF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
