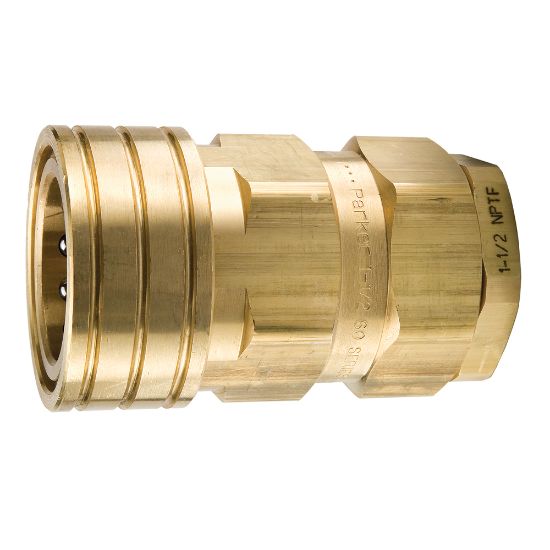

Parker BH12-60N - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BH12-60N

$570.80

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	ISO 7241-1 Series B
Division	Quick Coupling Division	Ball Material	Stainless Steel
Hex Size	2.38 inch	Minimum Operating Temperature	-40 °C
Vacuum Pressure Rating	n/a	Maximum Operating Temperature	121 °C
Product Type	Manual Connect	Valve Type	Poppet
Valve Material	Brass	Plating Type	n/a
Flow Rate	100 Gal/min	Body Material	Brass
Connection Type	Female NPTF	Body Material	BRASS
Body Size (inch)	1 1/2	Application	General Purpose
Maximum Operating Pressure	1500	Coupling Half	Female Coupler
Connection Thread Size (inch)	1-1/2 - 11-1/2	Seal Material	Nitrile

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
