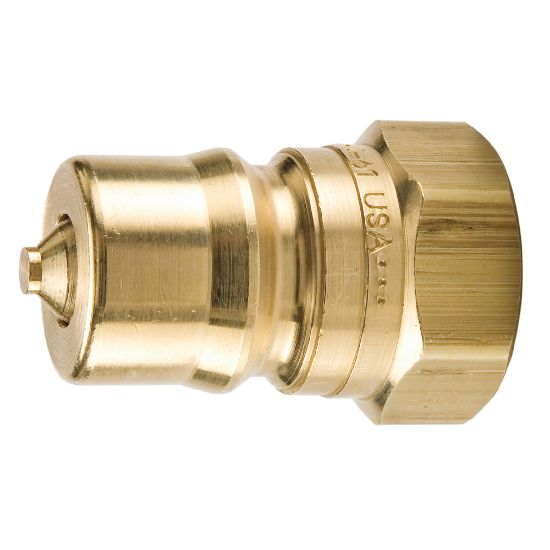

Parker BH1-61Y - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BH1-61Y

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	3 L/min	Specifications Met	ISO 7241-1, series B
Product Type	Manual Connect	Valve Material	Brass
Valve Type	Poppet	Plating Type	na
Division	Quick Coupling Division	Minimum Operating Temperature	-26 °C
Vacuum Pressure Rating	-0.9 bar	Maximum Operating Temperature	400 °F
Hex Size	0.56 inch	Body Material	Brass
Connection Thread Size (inch)	1/8 - 27	Coupling Half	Male Nipple
Maximum Operating Pressure	3000	Body Material	BRASS
Connection Type	Female NPTF	Application	General Purpose
Seal Material	Fluorocarbon	Body Size (inch)	1/8
