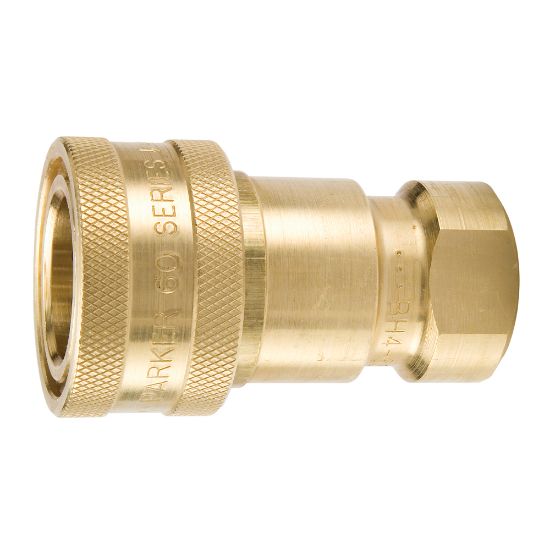

Parker BH1-60Y-4FP - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BH1-60Y-4FP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	ISO 7241-1, series B	Maximum Operating Temperature	204 °C
Product Type	Manual Connect	Flow Rate	0.8 Gal/min
Valve Material	Brass	Valve Type	Poppet
Minimum Operating Temperature	-15 °F	Ball Material	Stainless Steel
Plating Type	na	Division	Quick Coupling Division
Vacuum Pressure Rating	-0.9 bar	Hex Size	0.68 inch
Body Material	Brass	Seal Material	Fluorocarbon
Application	General Purpose	Body Size (inch)	1/8
Coupling Half	Female Coupler	Connection Thread Size (inch)	1/4 - 18
Maximum Operating Pressure	3000	Connection Type	Female NPTF
Body Material	BRASS
