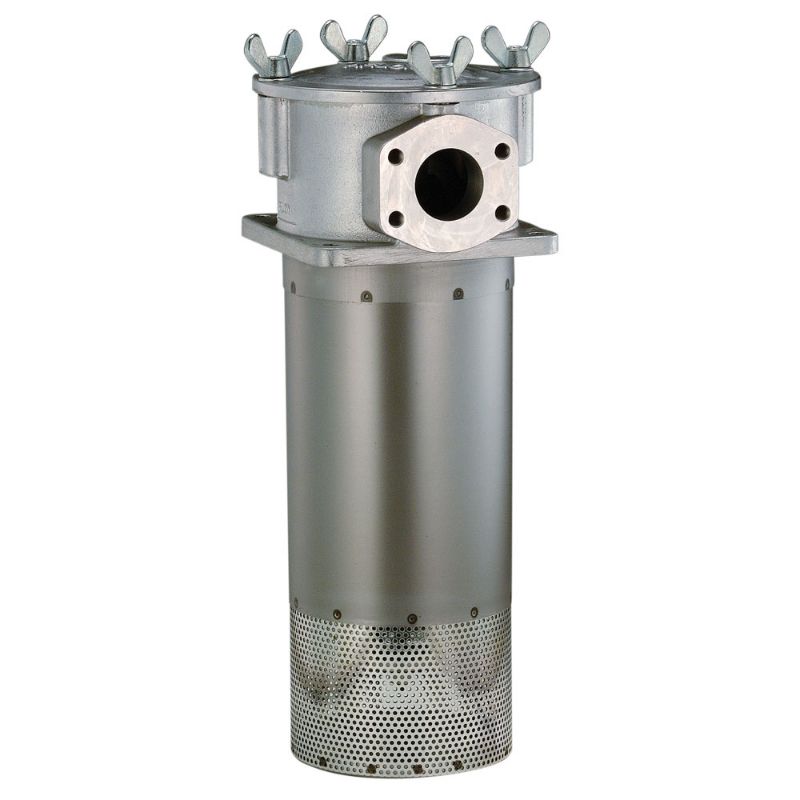

Parker BGT1702QBEEF481 - BGT NA

Parker's tank top return line BGT series features pre-filtration by means of a magnet column and a full flow bypass with low hysteresis. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 640 GPM/2400 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BGT1702QBEEF481

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Product Type	Hydraulic Filter
Division	Engine Mobile Hydraulic and Fuel Filtration Division	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Options	None	Filter Element Type	Cartridge
Maximum Operating Temperature	107.0 °C	Product Style	Hydraulic Filter
Pressure Rating	10 bar	Housing Material	Aluminum Alloy
Port Type	3inch SAE flange, Code 61	Indicator Type	Electrical Differential Indicator
Mounting Style	Tank Top	Indicator Pressure Setting	18 psi
Weight	37.2 kg	Flow Rate	2000.0 L/min
Compatible Element	937736Q	Bypass Valve Pressure Rating	22 psi
Seal Material	Nitrile	Options	None
Indicator Type	Electrical Differential Indicator	Port Connection Type	3inch SAE flange, Code 61
Bypass Valve Pressure Rating	22 psi (1.5 bar)	Flow Rate	530 gpm (2000 lpm)
Filter Element Type	2Q microglass
