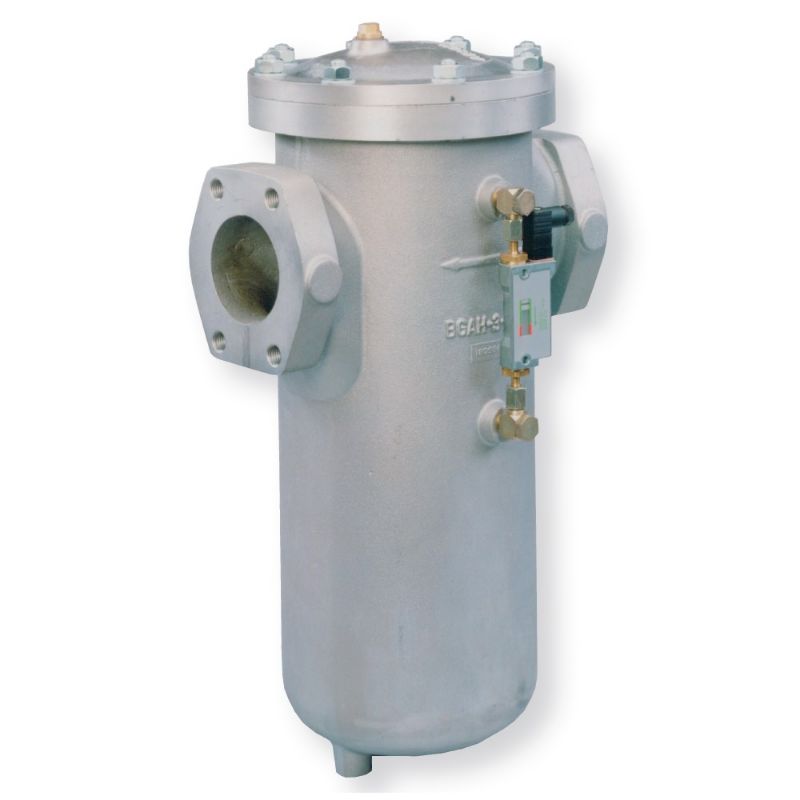

Parker BGAH11040WBP2XR482 - Low Pressure In-Line Filter - BGAH Series

The BGAH is a series of low pressure in line filters, featuring magnetic pre-filtration and a wide range of filter media.
It has a light weight aluminium housing design.
Suitable for a max. flow of 500 l/min and a max. pressure of 25 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BGAH11040WBP2XR482

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	400 L/min	Division	Hydraulic & Industrial Process Filtration Division EMEA
Mounting Type	Inline	Housing Material	Aluminium
Pressure Rating	25 bar	Seal Material	Nitrile
Port Type	3" SAE-3000M	Operating Temperature	-40 to 100 °C
Indicator Type	No indicator, ports plugged L+R *	Bypass Valve (bar)	Blocked
Flow Capacity (l/min)	400	Filter Element	040W Wiremesh
Options	No bypass, with magnets
