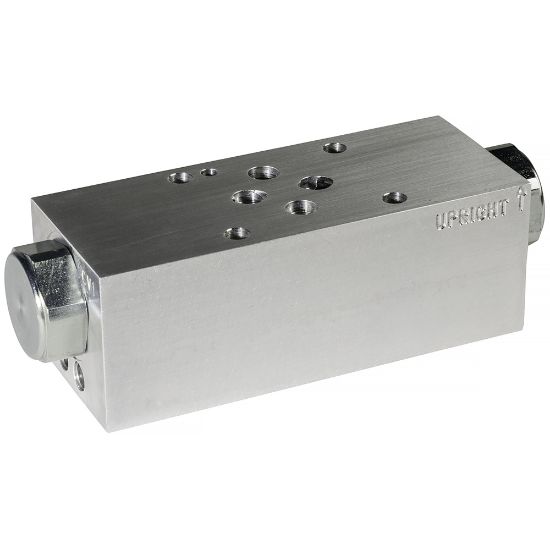

Parker BD03-POC-A - Cartpak Bodies

REGIONAL - Parker’s Cartpak sandwich mounted bodies are designed to be mounted under a standard ISO 4401-03, NFPA D03, CETOP 3 size valve, and provide a multitude of valve functionality.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BD03-POC-A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	n/a	Cavity Size	C10-2
For Fluid Type	Synthetic Hydraulic Fluids	Number of Cavities	2
Body Material	Aluminum	Maximum Flow Rate	n/a
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Seal Material	Nitrile	Minimum Operating Temperature	-34 °C
Actuation Type	n/a	Weight	0.34 kg
Configuration	Dual PO Check (A and B to Tank)	Maximum Operating Pressure	210 bar
Maximum Operating Temperature	121 °C	Operating Temperature	-34 to 121 °C
Seal Material	Nitrile	Body Material	Aluminum
Type/Configuration	Dual PO Check (A and B to Tank)

Product resources

Literature and Reference Materials
