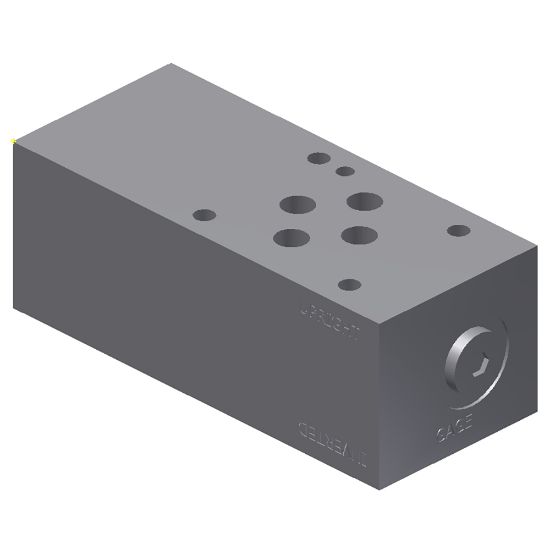

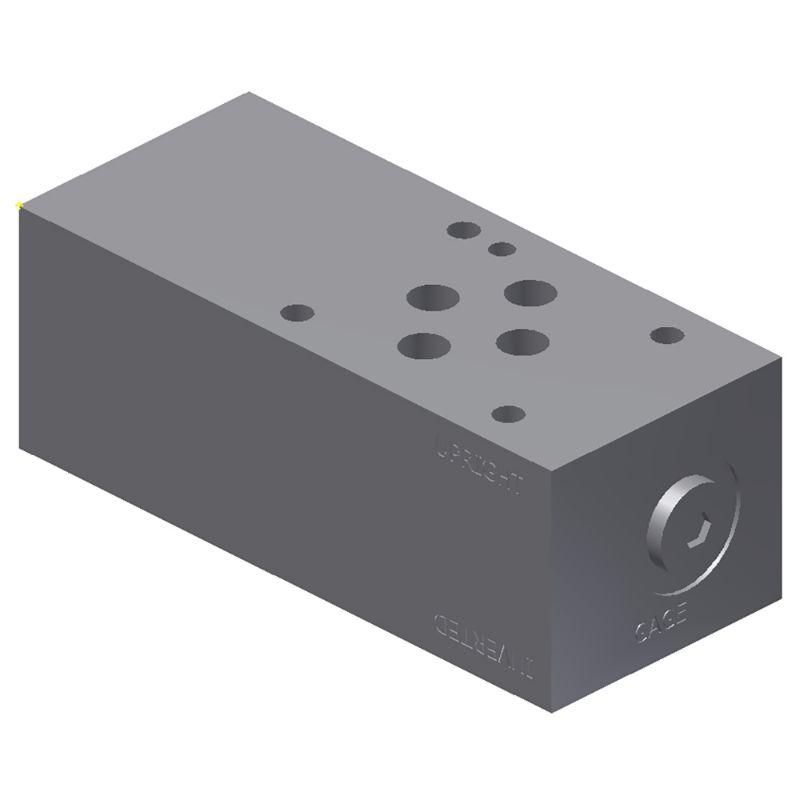

Parker BD03-PN-VS - Cartpak Bodies

REGIONAL - Parker’s Cartpak sandwich mounted bodies are designed to be mounted under a standard ISO 4401-03, NFPA D03, CETOP 3 size valve, and provide a multitude of valve functionality.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BD03-PN-VS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	204 °C	Number of Cavities	1
For Fluid Type	Mineral-based Hydraulic Fluids	Minimum Operating Temperature	-15 °F
Flow Rate	n/a	Cavity Size	C10-2
Maximum Operating Pressure	5000 psi	Weight	0.97 kg
Configuration	P Port Interrupt (P Port to Inlet Valve Port 1)	Seal Material	Fluorocarbon
Actuation Type	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Body Material	Steel
Maximum Flow Rate	n/a	Operating Temperature	-26 to 204 °C
Body Material	Steel	Seal Material	Fluorocarbon
Type/Configuration	P Port Interrupt (P Port to Inlet Valve Port 1)
