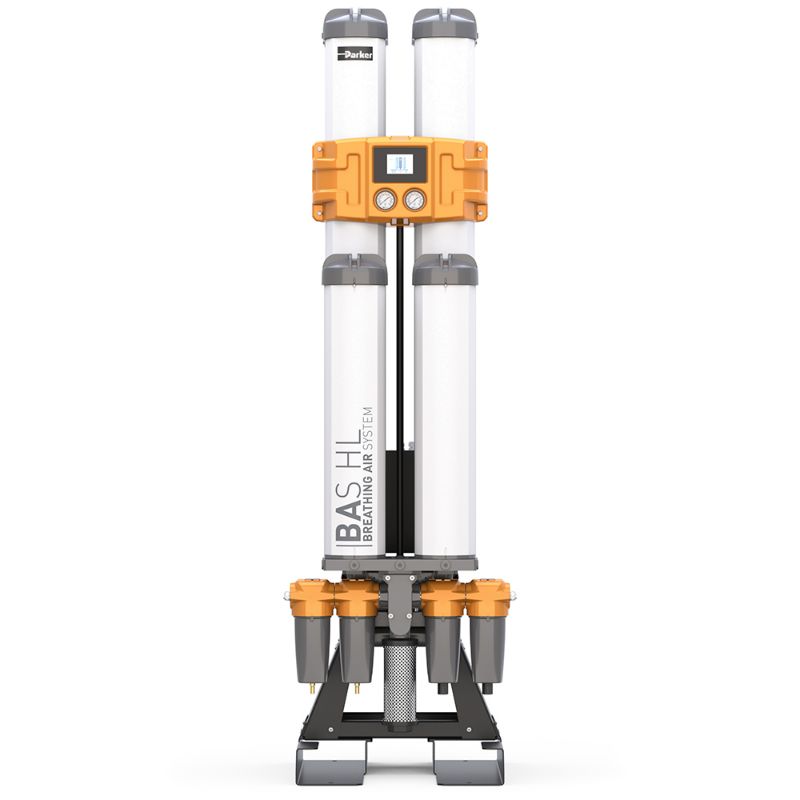

Parker BASHL085-40G16AE - BAS - Breathing Air System

Small to medium flow breathing air systems providing purified breathing air, with CO/CO2 reduction. Tested in accordance with European Pharmacopoeia and other international breathing air standards with volume flow rates up to 300 m³/h @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BASHL085-40G16AE

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
ISO Grade	ISO8573-1:2010 Class 1.2.0	Brand	Parker
Specifications Met	PED 2014/68/EU Fluid Group II	Width	630.0 mm
Compatible Prefilter	OIL-X Grades AO and AA Coalescing (Included)	Ambient Temperature	55.0 °C Maximum
Division	Gas Separation and Filtration Division EMEA	Product Type	Breathing Air Purifier
Height	2105.0 mm	Product Series	BAS
Application	• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• Demolition	Compatible After Filter	OIL-X Grades AO and AA Dry Particulate (Included)<br/>Oil Vapour Reduction and Catalyst Stage (Included)
Operating Temperature	5 to 35 °C	Ingress Protection Rating	IP55 Indoor Use Only
Division	Gas Separation and Filtration Division EMEA	Operating Pressure	4 to 16 barg
Technology	Filtration	Weight	255 kg
Depth	682.0 mm	Pressure Dew Point	-40.0 °F
Industry	Agriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &	Noise Level	< 75 dBA
Electrical Requirements	Standard:<br/>85 - 265 V 1ph 50/60Hz<br/><br/>Option:<br/>24V DC	Port Size	1½"
Flow Rate	300 m³/h @ 7 barg (177 cfm @ 102 psig)	Connection Type	BSPP
