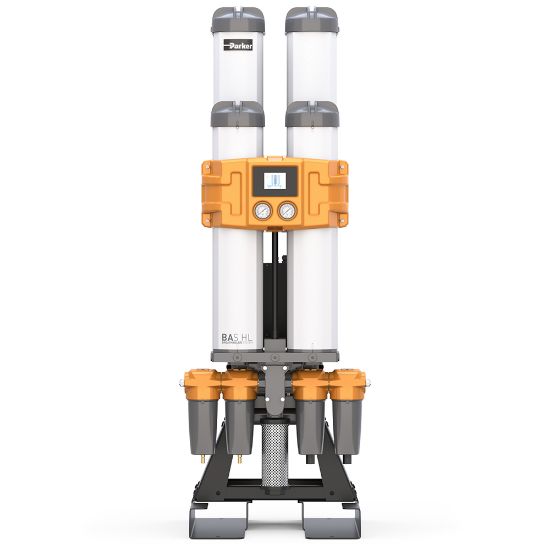

Picture of Parker BASHL080-40G16AE - BAS - Breathing Air System

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker BASHL080-40G16AE - BAS - Breathing Air System

Small to medium flow breathing air systems providing purified breathing air, with CO/CO2 reduction. Tested in accordance with European Pharmacopoeia and other international breathing air standards with volume flow rates up to 300 m³/h @ 7 barg.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. BASHL080-40G16AE
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Compatible PrefilterOIL-X Grades AO and AA Coalescing (Included)DivisionGas Separation and Filtration Division EMEA
Operating Temperature41 to 95 °FProduct TypeBreathing Air Purifier
Operating Pressure58 to 232 psigWeight220 kg
Depth27 inchProduct SeriesBAS
Application• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• DemolitionAmbient Temperature131.0 °F Maximum
DivisionGas Separation and Filtration Division EMEACompatible After FilterOIL-X Grades AO and AA Dry Particulate (Included)<br/>Oil Vapour Reduction and Catalyst Stage (Included)
Ingress Protection RatingIP55 Indoor Use OnlyTechnologyFiltration
Width24.8 inchPressure Dew Point-40.0 °F
Height69 inchElectrical RequirementsStandard:<br/>85 - 265 V 1ph 50/60Hz<br/><br/>Option:<br/>24V DC
Noise Level< 75 dBAIndustryAgriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &
ISO GradeISO8573-1:2010 Class 1.2.0BrandParker
Specifications MetPED 2014/68/EU Fluid Group IIFlow Rate220 m³/h @ 7 barg (129 cfm @ 102 psig)
Port Size1"Connection TypeBSPP
