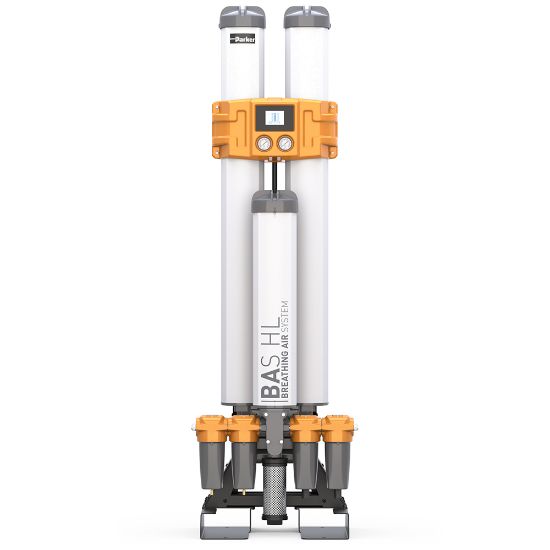

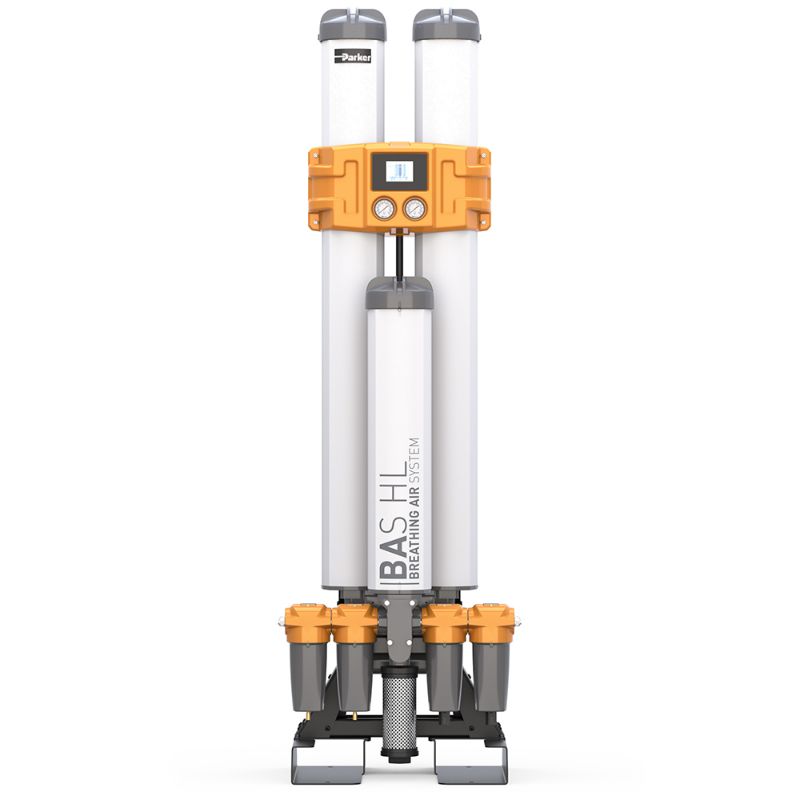

Picture of Parker BASHL070-40N16AE - BAS - Breathing Air System

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker BASHL070-40N16AE - BAS - Breathing Air System

Small to medium flow breathing air systems providing purified breathing air, with CO/CO2 reduction. Tested in accordance with European Pharmacopoeia and other international breathing air standards with volume flow rates up to 300 m³/h @ 7 barg.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. BASHL070-40N16AE
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Noise Level< 75 dBAElectrical RequirementsStandard:<br/>85 - 265 V 1ph 50/60Hz<br/><br/>Option:<br/>24V DC
IndustryAgriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &ISO GradeISO8573-1:2010 Class 1.2.0
BrandParkerSpecifications MetPED 2014/68/EU Fluid Group II
Compatible PrefilterOIL-X Grades AO and AA Coalescing (Included)Ambient Temperature131.0
Operating Temperature41 to 95 °FDivisionGas Separation and Filtration Division EMEA
Height80 inchProduct TypeBreathing Air Purifier
Pressure Dew Point-40 °CProduct SeriesBAS
Operating Pressure58 to 232 psigApplication• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• Demolition
DivisionGas Separation and Filtration Division EMEACompatible After FilterOIL-X Grades AO and AA Dry Particulate (Included)<br/>Oil Vapour Reduction and Catalyst Stage (Included)
Ingress Protection RatingIP55 Indoor Use OnlyTechnologyFiltration
Depth496.0 mmWeight304 lb
Width24.8 inchConnection TypeNPT
Port Size¾"Flow Rate150 m³/h @ 7 barg (88 cfm @ 102 psig)
