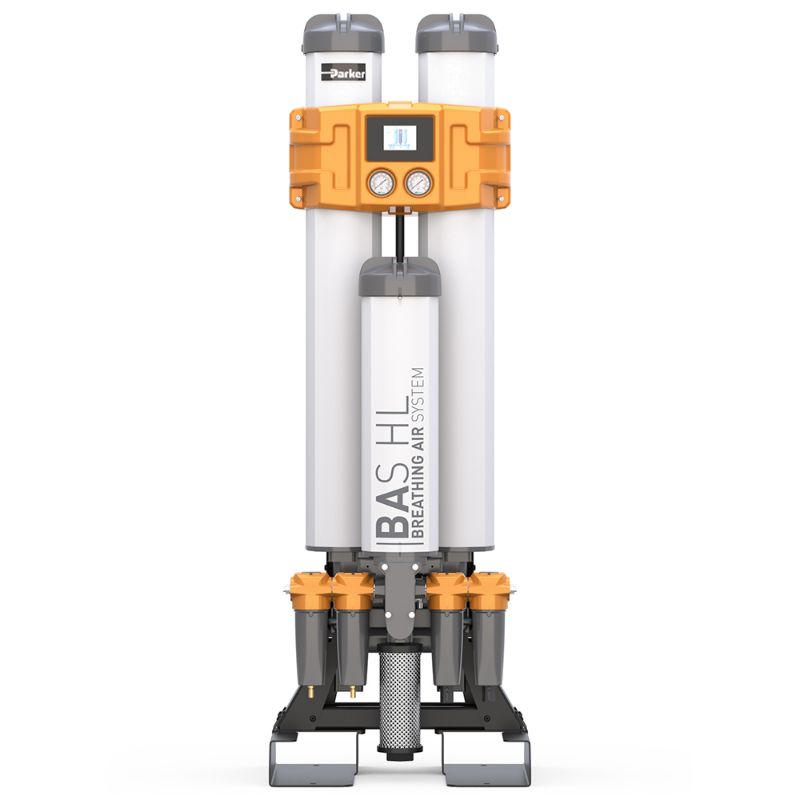

Parker BASHL065-40N16AE - BAS - Breathing Air System

Small to medium flow breathing air systems providing purified breathing air, with CO/CO2 reduction. Tested in accordance with European Pharmacopoeia and other international breathing air standards with volume flow rates up to 300 m³/h @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BASHL065-40N16AE

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	PED 2014/68/EU Fluid Group II	Compatible Prefilter	OIL-X Grades AO and AA Coalescing (Included)
Depth	19.5 inch	Brand	Parker
Weight	115 kg	Operating Temperature	41 to 95 °F
Division	Gas Separation and Filtration Division EMEA	Operating Pressure	58 to 232 psig
Product Type	Breathing Air Purifier	Ambient Temperature	131.0 °F Maximum
Pressure Dew Point	-40 °C	Width	22 inch
Product Series	BAS	Application	• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• Demolition
Division	Gas Separation and Filtration Division EMEA	Ingress Protection Rating	IP55 Indoor Use Only
Compatible After Filter	OIL-X Grades AO and AA Dry Particulate (Included)<br/>Oil Vapour Reduction and Catalyst Stage (Included)	Technology	Filtration
Electrical Requirements	Standard:<br/>85 - 265 V 1ph 50/60Hz<br/><br/>Option:<br/>24V DC	Noise Level	< 75 dBA
Industry	Agriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &	ISO Grade	ISO8573-1:2010 Class 1.2.0
Height	65 inch	Flow Rate	110 m³/h @ 7 barg (65 cfm @ 102 psig)
Port Size	½"	Connection Type	NPT
