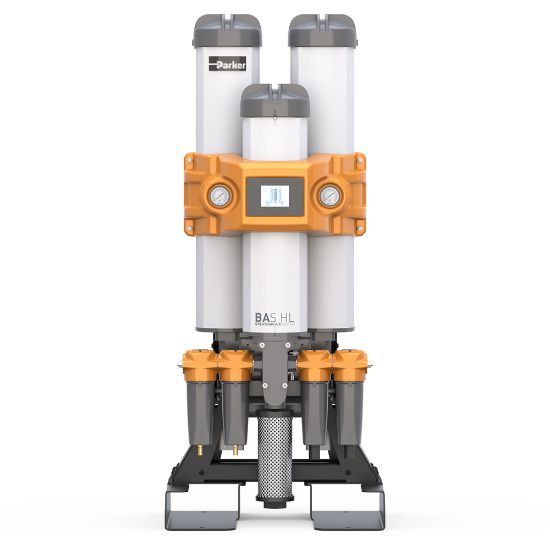

Picture of Parker BASHL055-40N16AE - BAS - Breathing Air System

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker BASHL055-40N16AE - BAS - Breathing Air System

Small to medium flow breathing air systems providing purified breathing air, with CO/CO2 reduction. Tested in accordance with European Pharmacopoeia and other international breathing air standards with volume flow rates up to 300 m³/h @ 7 barg.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. BASHL055-40N16AE
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Pressure Dew Point-40 °CProduct SeriesBAS
Application• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• DemolitionOperating Temperature5 to 35 °C
Compatible After FilterOIL-X Grades AO and AA Dry Particulate (Included)<br/>Oil Vapour Reduction and Catalyst Stage (Included)Ingress Protection RatingIP55 Indoor Use Only
DivisionGas Separation and Filtration Division EMEATechnologyFiltration
Weight218 lbOperating Pressure4 to 16 barg
Ambient Temperature55.0IndustryAgriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &
Noise Level< 75 dBAElectrical RequirementsStandard:<br/>85 - 265 V 1ph 50/60Hz<br/><br/>Option:<br/>24V DC
ISO GradeISO8573-1:2010 Class 1.2.0Depth512.0 mm
Specifications MetPED 2014/68/EU Fluid Group IIBrandParker
Compatible PrefilterOIL-X Grades AO and AA Coalescing (Included)DivisionGas Separation and Filtration Division EMEA
Width559.0 mmProduct TypeBreathing Air Purifier
Height1313.0 mmFlow Rate70 m³/h @ 7 barg (41 cfm @ 102 psig)
Port Size½"Connection TypeNPT
