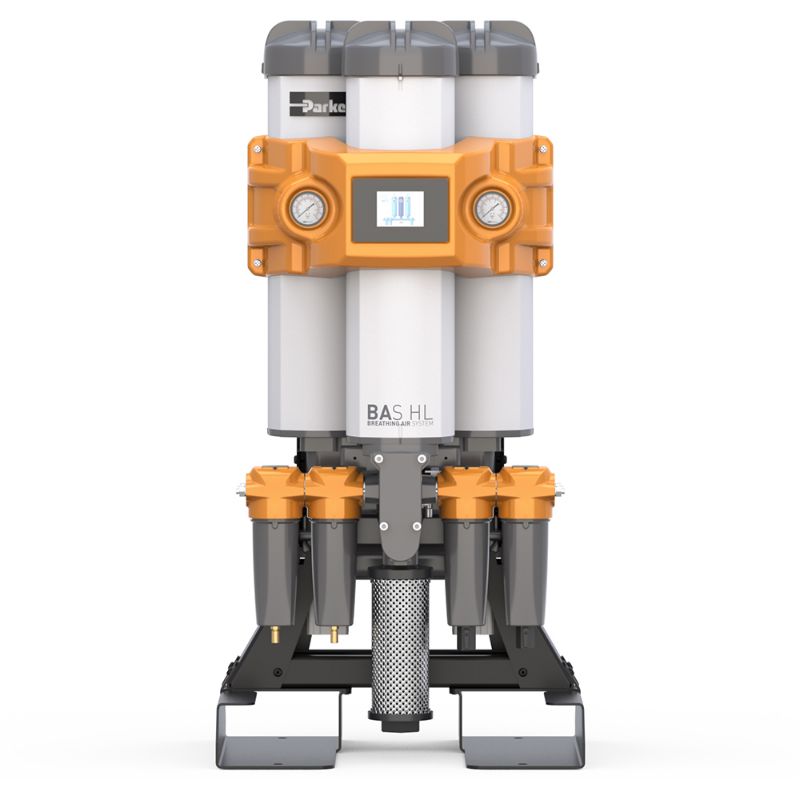

Parker BASHL050-40N16AE - BAS - Breathing Air System

Small to medium flow breathing air systems providing purified breathing air, with CO/CO2 reduction. Tested in accordance with European Pharmacopoeia and other international breathing air standards with volume flow rates up to 300 m³/h @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BASHL050-40N16AE

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Height	45 inch	Division	Gas Separation and Filtration Division EMEA
Ingress Protection Rating	IP55 Indoor Use Only	Compatible After Filter	OIL-X Grades AO and AA Dry Particulate (Included)<br/>Oil Vapour Reduction and Catalyst Stage (Included)
Technology	Filtration	Operating Pressure	4 to 16 barg
Electrical Requirements	Standard:<br/>85 - 265 V 1ph 50/60Hz<br/><br/>Option:<br/>24V DC	Noise Level	< 75 dBA
Industry	Agriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &	Specifications Met	PED 2014/68/EU Fluid Group II
Brand	Parker	Depth	512.0 mm
ISO Grade	ISO8573-1:2010 Class 1.2.0	Weight	92 kg
Pressure Dew Point	-40 °F	Operating Temperature	41 to 95 °F
Compatible Prefilter	OIL-X Grades AO and AA Coalescing (Included)	Division	Gas Separation and Filtration Division EMEA
Product Type	Breathing Air Purifier	Ambient Temperature	131.0 °F Maximum
Product Series	BAS	Application	• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• Demolition
Width	22 inch	Port Size	½"
Connection Type	NPT	Flow Rate	55 m³/h @ 7 barg (32 cfm @ 102 psig)
