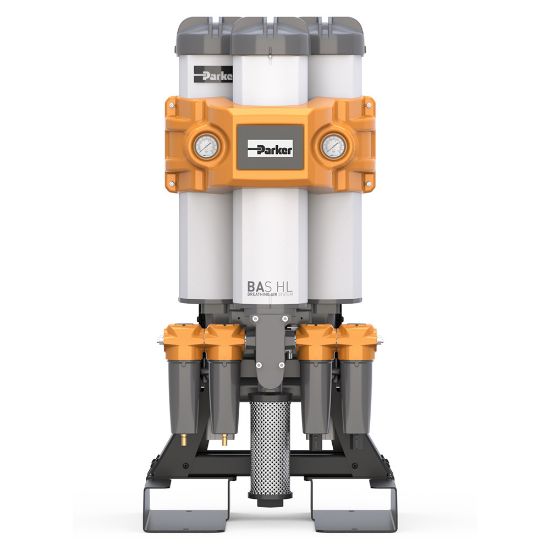

Parker BASHL050-40G16PP - BAS - Breathing Air System

Small to medium flow breathing air systems providing purified breathing air, with CO/CO2 reduction. Tested in accordance with European Pharmacopoeia and other international breathing air standards with volume flow rates up to 300 m³/h @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BASHL050-40G16PP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Compatible Prefilter	OIL-X Grades AO and AA Coalescing (Included)	Ingress Protection Rating	N/A
Division	Gas Separation and Filtration Division EMEA	Operating Temperature	41 to 95 °F
Electrical Requirements	N/A - Pneumatic Operation Only	Product Type	Breathing Air Purifier
Pressure Dew Point	-40 °C	Product Series	BAS
Application	• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• Demolition	Operating Pressure	58 to 232 psig
Depth	20.2 inch	Width	22 inch
Compatible After Filter	OIL-X Grades AO and AA Dry Particulate (Included)<br/>Oil Vapour Reduction and Catalyst Stage (Included)	Ambient Temperature	131.0 °F Maximum
Technology	Filtration	Division	Gas Separation and Filtration Division EMEA
Height	1133.0 mm	Noise Level	< 75 dBA
Industry	Agriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &	ISO Grade	ISO8573-1:2010 Class 1.2.0
Weight	92 kg	Brand	Parker
Specifications Met	PED 2014/68/EU Fluid Group II	Flow Rate	55 m³/h @ 7 barg (32 cfm @ 102 psig)
Connection Type	BSPP	Port Size	½"
