*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Sorry - this product is no longer available

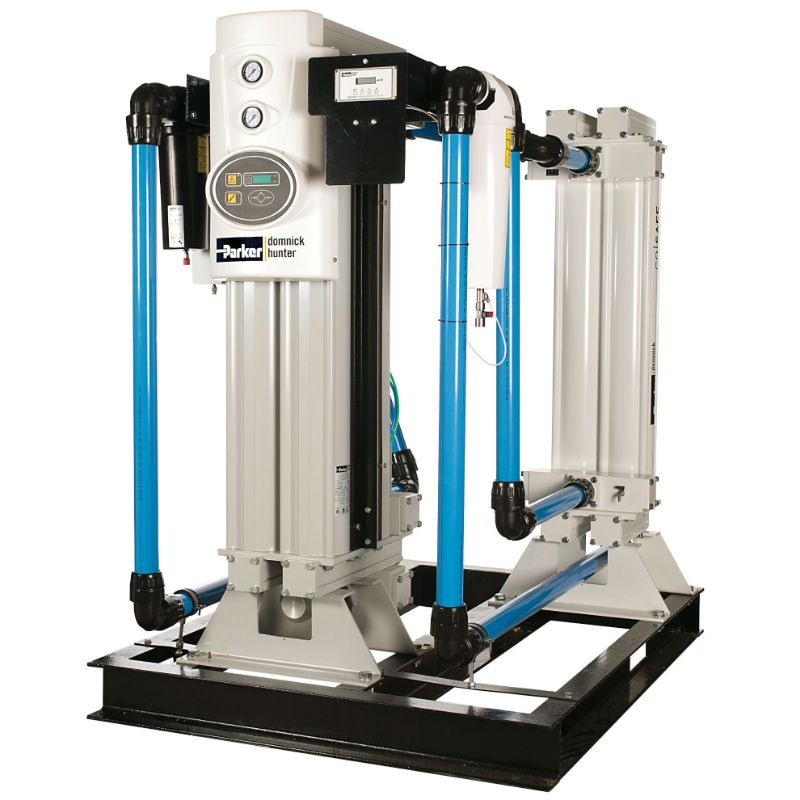

Parker BAM10 - BAM Breathing Air System

Skid mounted, seven stage breathing air system providing breathing air with CO/CO2 reduction for high-capacity multiple personnel breathing air applications at volume flow rates up to 1426m³/h @ 7 barg.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BAM10

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Industry	Agriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &
Application	• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• Demolition	Specifications Met	PED 2014/68/EU Fluid Group II
Noise Level	< 75 dBA	Weight	600 kg
Depth	1655.0 mm	Width	49.6 inch
Height	1797.0 mm	Product Type	Breathing Air Purifier
Product Series	BAM	Connection Type	BSPP or NPT
Operating Pressure	4 to 13 barg	Ambient Temperature	55.0 °C Maximum
Operating Temperature	41 to 95 °F	Electrical Requirements	Standard:<br/>85 - 265 V 1ph 50/60Hz
Ingress Protection Rating	IP55 Indoor Use Only	ISO Grade	ISO8573-1:2010 Class 1.2.1
Pressure Dew Point	-40 °F	Compatible Prefilter	OIL-X Grades AO and AA Coalescing (Included)
Compatible After Filter	OIL-X Grades AO and AA Dry Particulate (Included)<br/>OIL-X OVR Oil Vapour Reduction (Included)	Port Size	2 inch
Flow Rate	408 m³/h @ 7 barg (240 cfm @ 102 psig)

Product resources

Literature and Reference Materials
