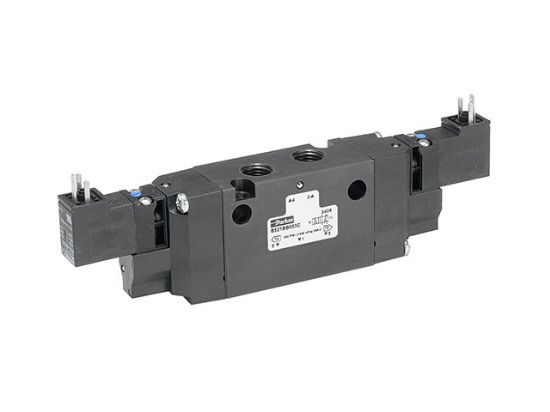

Parker B824BB549A - B Series Double Solenoid 4-way 2-position Valve

B Series Double Solenoid 4-way 2-position Valve

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B824BB549A

$504.34

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Port	3/4 NPT
Operator Type Detail	Double	Solenoid Voltage	24VDC
Pilot Supply	Internal	Override Type	Non-locking
CV Factor	7	Parker Group	Automation
Parker Division	Pneumatic	Port Inch/BSP	NPT
Port	3/4 NPT	Pneumatic Valve Type	Inline Valve
Valve Passages	4-way	Valve Positions	2-position
Series	B	Operating Temperature	-15°C to 49°C (5°F to 120°F)
Operator Type	Solenoid	Operator Type Detail	Double
Solenoid Connection	15mm 3-Pin DIN 43650C	Solenoid Voltage	24VDC
Pilot Supply	Internal	Override Type	Non-locking
Supply Pressure Range	35 to 145 PSIG (2.4 to 10 bar)	CV Factor	7
