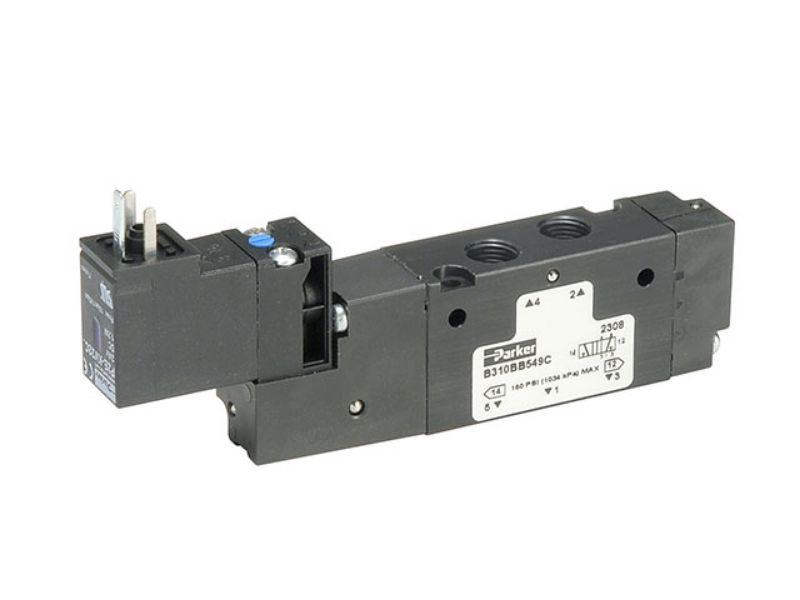

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker B713BB553A - B Series Single Solenoid 4-way 2-position Valve

B Series Single Solenoid 4-way 2-position Valve

AFP Availability:	Quote Required
Partner Available:	6 In Stock

Brand Parker

Part No. B713BB553A

$404.82/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port	1/2 NPT
Operator Type Detail	Single	Pilot Supply	Internal
Pkg Qty	1	Offset Return Type	Air Return
Override Type	Non-locking	CV Factor	5.9
Solenoid Voltage	120VAC	UOM	EA
Parker Group	Automation	Parker Division	Pneumatic
Port Inch/BSP	NPT	Port	1/2 NPT
Pneumatic Valve Type	Inline Valve	Valve Passages	4-way
Valve Positions	2-position	Series	B
Operating Temperature	-15°C to 49°C (5°F to 120°F)	Operator Type	Solenoid
Operator Type Detail	Single	Offset Return Type	Air Return
Solenoid Connection	15mm 3-Pin DIN 43650C	Solenoid Voltage	120VAC
Pilot Supply	Internal	Override Type	Non-locking
Supply Pressure Range	35 to 145 PSIG (2.4 to 10 bar)	CV Factor	5.9
