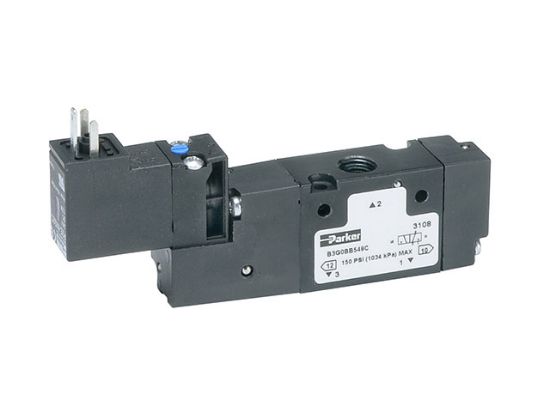

Parker B6V2BB553A - B Series Single Solenoid 3-way 2-position Valve

B Series Single Solenoid 3-way 2-position Valve

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B6V2BB553A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port	3/8 NPT	CV Factor	2.7
Offset Return Type	Air Return/Spring Assist	Pkg Qty	1
Pilot Supply	Internal	UOM	EA
Override Type	Non-locking	Operator Type Detail	Single
Solenoid Voltage	120VAC	Supply Pressure Range	35 to 145 PSIG (2.4 to 10 bar)
Port Inch/BSP	NPT	Pneumatic Valve Type	Inline Valve
CV Factor	2.7	Solenoid Voltage	120VAC
Operator Type	Solenoid	Parker Division	Pneumatic
Valve Passages	3-way	Series	B
Valve Positions	2-position	Pilot Supply	Internal
Solenoid Connection	15mm 3-Pin DIN 43650C	Operating Temperature	-15°C to 49°C (5°F to 120°F)
Parker Group	Automation	Port	3/8 NPT
Override Type	Non-locking	Offset Return Type	Air Return/Spring Assist
Operator Type Detail	Single
