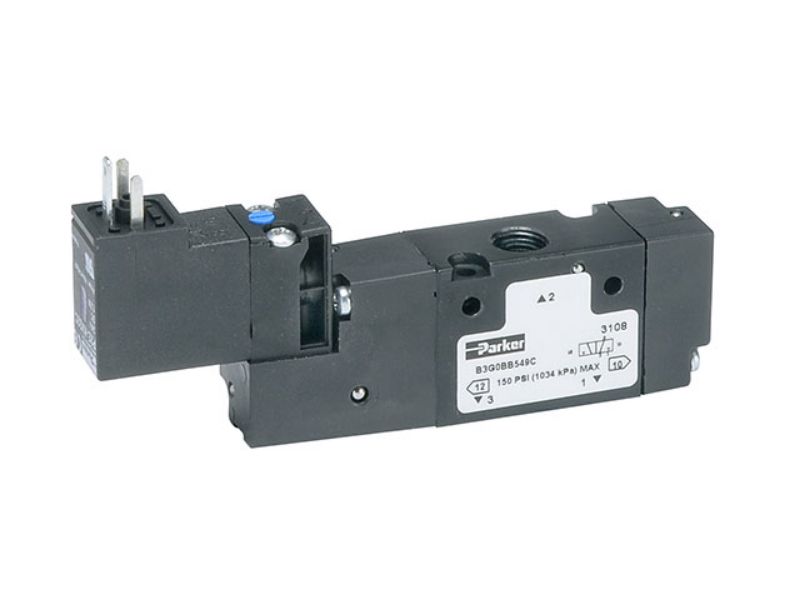

Parker B6V2BB549A - B Series Single Solenoid 3-way 2-position Valve

B Series Single Solenoid 3-way 2-position Valve

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B6V2BB549A

$73.19

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Override Type	Non-locking
Operator Type Detail	Single	Solenoid Voltage	24VDC
UOM	EA	CV Factor	2.7
Offset Return Type	Air Return/Spring Assist	Pkg Qty	1
Port	3/8 NPT	Pilot Supply	Internal
Operator Type Detail	Single	Parker Group	Automation
Pilot Supply	Internal	Port	3/8 NPT
Override Type	Non-locking	Supply Pressure Range	35 to 145 PSIG (2.4 to 10 bar)
Offset Return Type	Air Return/Spring Assist	Solenoid Voltage	24VDC
Pneumatic Valve Type	Inline Valve	Operator Type	Solenoid
Series	B	Parker Division	Pneumatic
CV Factor	2.7	Port Inch/BSP	NPT
Valve Positions	2-position	Solenoid Connection	15mm 3-Pin DIN 43650C
Valve Passages	3-way	Operating Temperature	-15°C to 49°C (5°F to 120°F)
