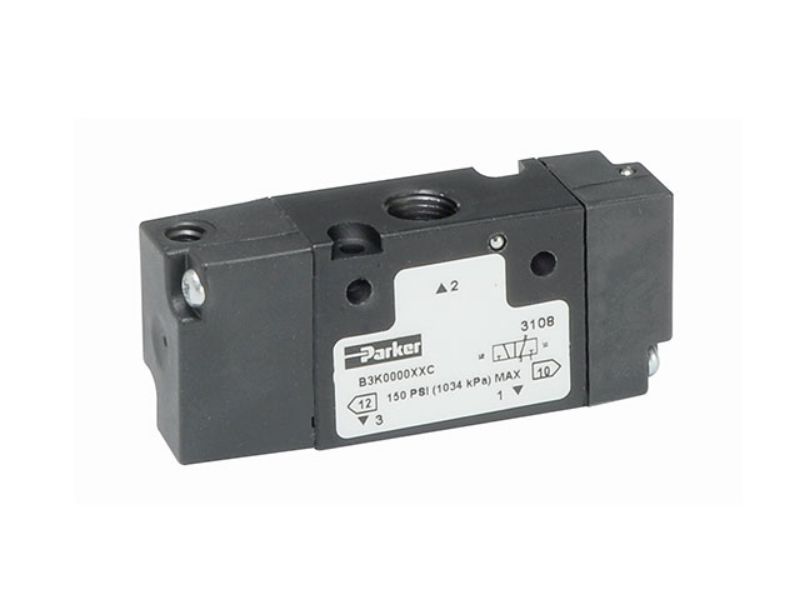

Parker B3K0000XXC - B Series Single Air Piloted 3-way 2-position Valve

B Series Single Air Piloted 3-way 2-position Valve

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B3K0000XXC

$24.62

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Port	1/8 NPT
CV Factor	0.75	Operator Type Detail	Single
Offset Return Type	Air Return	Parker Group	Automation
Parker Division	Pneumatic	Port	1/8 NPT
Port Inch/BSP	NPT	Pneumatic Valve Type	Inline Valve
Valve Positions	2-position	Valve Passages	3-way
Series	B	Operating Temperature	-15°C to 49°C (5°F to 120°F)
Supply Pressure Range	20 to 145 PSIG (1.4 to 10 bar)	Operator Type	Air Piloted
Operator Type Detail	Single	Offset Return Type	Air Return
CV Factor	0.75

Product resources

Valve Products (PDF)
Technical Data (PDF)
