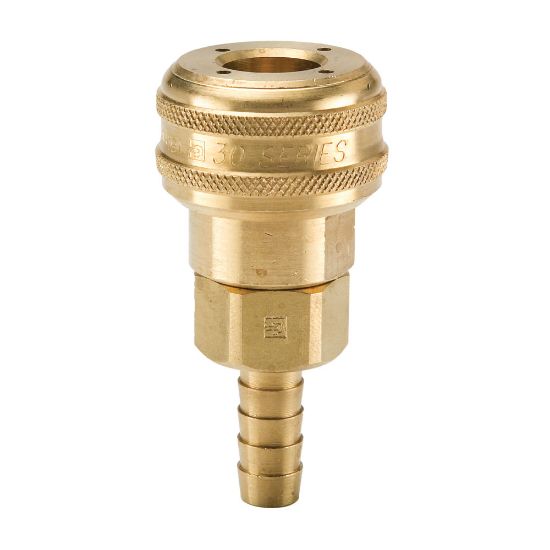

Parker B30-4B - Industrial Interchange, Push to Connect, Quick Connect Air Couplers - 30 Series

Parker's general purpose quick connect air couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B30-4B

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Application	Air	Division	Quick Coupling Division
Maximum Operating Pressure	300 psi	Minimum Operating Temperature	-40 °F
Lock Type	Pawls	Maximum Operating Temperature	250 °F
Sleeve Type	Push to Connect	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Seal Material	Nitrile	Media	Low pressure fluids and compressed air
Valve Type	Tubular	Coupling Half	Coupler
Body Material	Brass	Body Size (inch)	1/4
Thread Style	na	Body Material	BRASS
Connection Type	Hose barb	Connection Hose I.D. (inch)	5/16
Connection Thread Size (inch)	na
