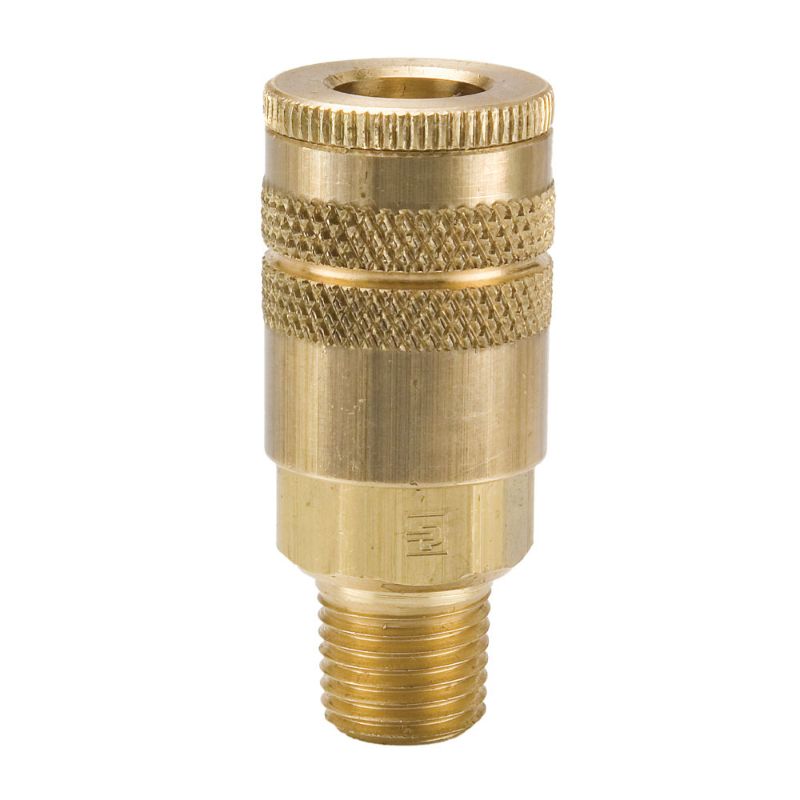

Parker B22E - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Name: Parker B22E - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series
SKU: B22E
Price: 23.11 USD
Availability: InStock

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:

221 In Stock

North Chesterfield, VA	103
Jacksonville, FL	30
Sumter, SC	20
East Knoxville, TN	20
West Knoxville, TN	14
Fayetteville, NC	10
Johnson City, TN	10 (Pickup only)
Summerville, SC	6
Norfolk, VA	3
Mooresville, NC	3
Ashland, VA	2 (Pickup only)

Partner Available:

718 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. B22E

$23.11/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Media	Low pressure fluids and compressed air
Maximum Operating Temperature	250 °F	Body Material	Brass
Lock Type	Locking balls	Minimum Operating Temperature	-40 °F
Plating Type	na	Application	Air
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Seal Material	Nitrile
Coupling Half	Coupler	Maximum Operating Pressure	300 psi
Valve Type	Tubular	Division	Quick Coupling Division
Sleeve Type	Manual	Dimensional Weight	0.026658673061550762 lb
Body Material	BRASS	Body Size (inch)	1/4
Connection Thread Size (inch)	3/8 - 18	Thread Style	Male
Connection Type	NPTF	Connection Hose I.D. (inch)	na
