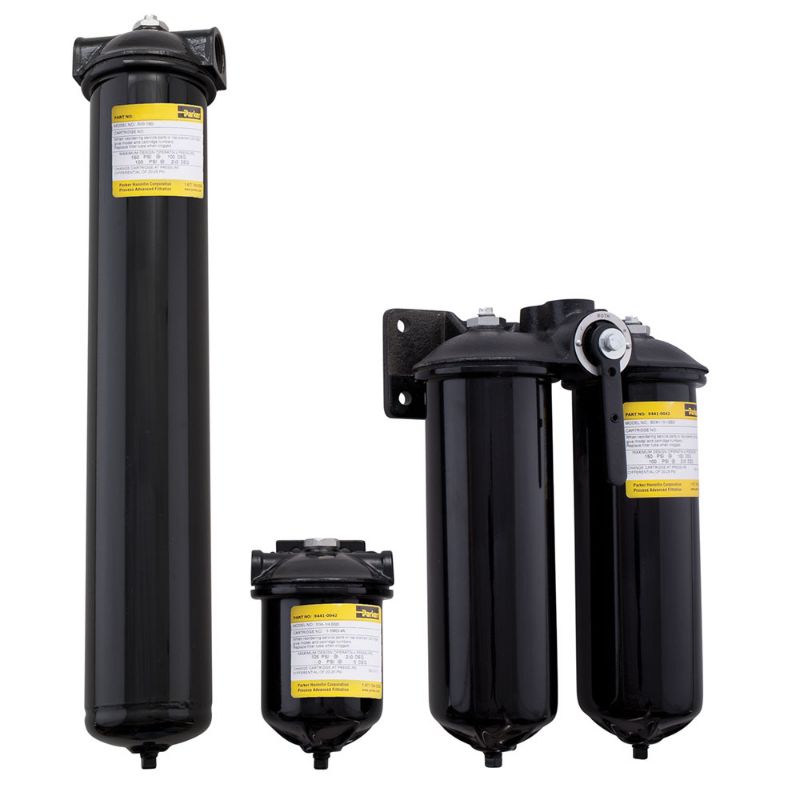

Parker B10-3/4SD - FULFLO B SINGLE CARTRIDGE FILTER VESSELS | CARBON STEEL NON ASME CODE DESIGN FOR LIQUID, AIR & GAS FILTRATION

Fulflo B single cartridge filter vessels have a carbon steel, non ASME code design for liquid and air/gas industrial applications with duplex and single cartidge configurations.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B10-3/4SD

Products specifications

Attribute name	Attribute value
Function	Clarification/Prefiltration/Polishing	Kits Included	1 cartridge
Division	Industrial Process Filtration Division	Media	Carbon Steel
Specifications Met	Non-ASME code	Flow Rate	5
Filter Construction	Vessel/Housing	Seal Material	Buna-N (250 F max.)
Brand	domnick hunter	Industry	Inks, Paints and Coatings
Maximum Operating Pressure	100 psi at 250°F	Length (inch)	10
Connection Size	3/4-inch NPT	Seal Type	Spring Loaded Seal / Drain
Type/Configuration	Liquid Single - Carbon Steel
