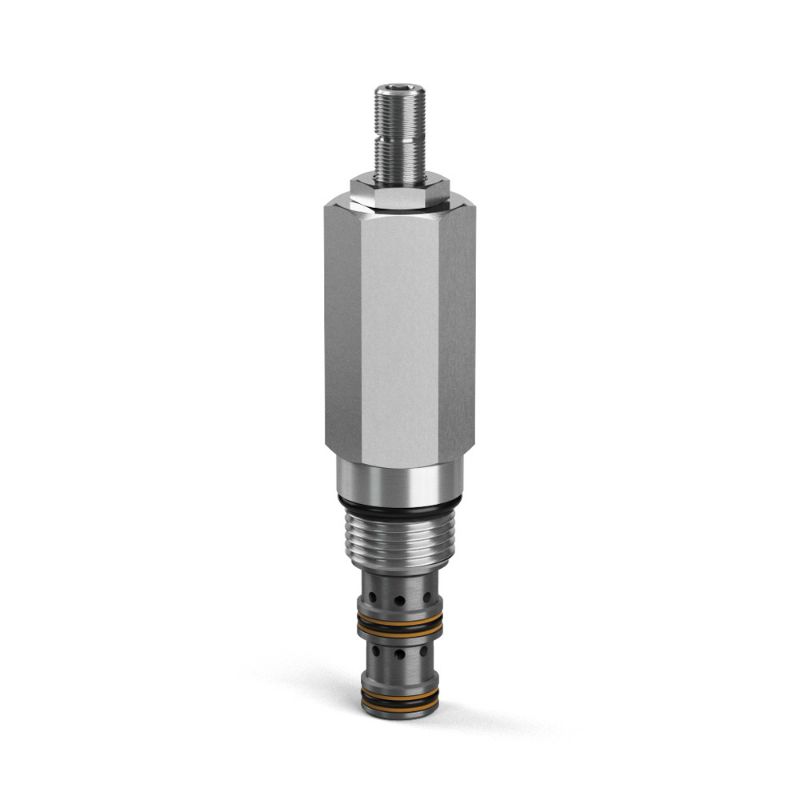

Parker B04G3GZN - Direct Acting Sequence Valve

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. B04G3GZN

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Body Material	n/a
Maximum Operating Pressure	6000 psi	Configuration	Normally Open (NO)
For Fluid Type	Synthetic Hydraulic Fluids	Pilot Location	External
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Automatic	Valve Material	Hardened Steel (all operating parts)
Adjustment Mechanism	Screw	Maximum Tank Pressure	420 bar
Operating Temperature	-34 to 121 °C	Maximum Inlet Pressure Rating	6000 psi
Leak Rate	25 cm3/min @ 1450 Psi (100 bar)	Installation Torque	37 lb-ft
Weight	0.66 lb	Function	Direct Acting Sequence
Cavity Size	C10-3	Drain Option	Internal
Sealed Pilot Included	No	Pressure Control Range	30 to 2400 psi
Maximum Pressure Setting	2400 psi	Pressure Control Sensitivity	17 bar Per Turn
Flow Rate	10.6 Gal/min	Maximum Flow Rate	10.6 Gal/min
Standard Setting Pressure	80 bar	Seal Material	Nitrile
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Sealed Pilot Included	No	Pressure Control Range	30-2400 PSI, 2-166 BAR
Flow Rate	10.6 GAL/MIN, 40 L/MIN
