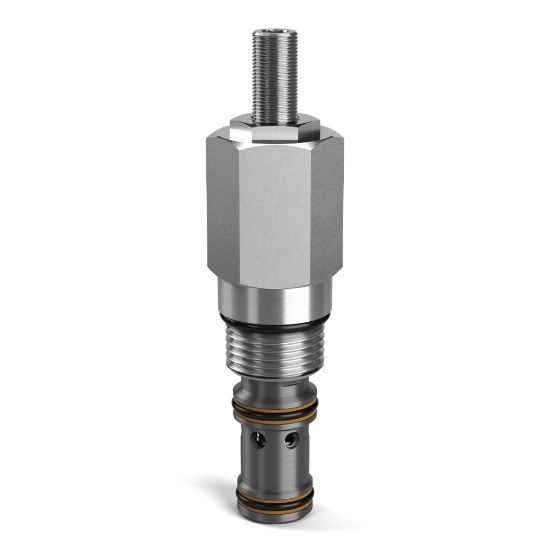

Parker B04D3HZV - Pilot Operated Sequence Valve with Reverse Check

REGIONAL - Parker's pilot operated sequence valve with reverse check combines two functions into a single cartridge reducing space, components, and manifold complexity. Capable of flows up to 70 lpm (32 gpm) and pressures up to 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B04D3HZV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	400	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Valve Systems Division
Cavity Size	C10-3S	For Fluid Type	Synthetic Hydraulic Fluids
Pilot Location	Internal	Valve Material	Steel (all parts)
Operating Temperature	-15 to 400	Filter Efficiency Rating	SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15
Maximum Operating Pressure	6000	Weight	0.55
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Maximum Pressure Setting	3000	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Automatic	Adjustment Mechanism	Screw
Maximum Tank Pressure	6000	Pressure Control Range	145 to 3000
Pressure Control Sensitivity	435 psi Per Turn	Maximum Inlet Pressure Rating	6000
Installation Torque	37	Standard Setting Pressure	1450
Maximum Flow Rate	18.5	Function	Pilot Operated Sequence
Flow Rate	18.5	Leak Rate	50 drops/min @ 1450 Psi (100 bar)
Drain Option	External	Configuration	Reverse Flow Check
Seal Material	Fluorocarbon	Adjustment Mechanism	Screw
Pressure Control Range	145-3000 PSI, 10-210 BAR	Flow Rate	18.5 GAL/MIN, 70 L/MIN
