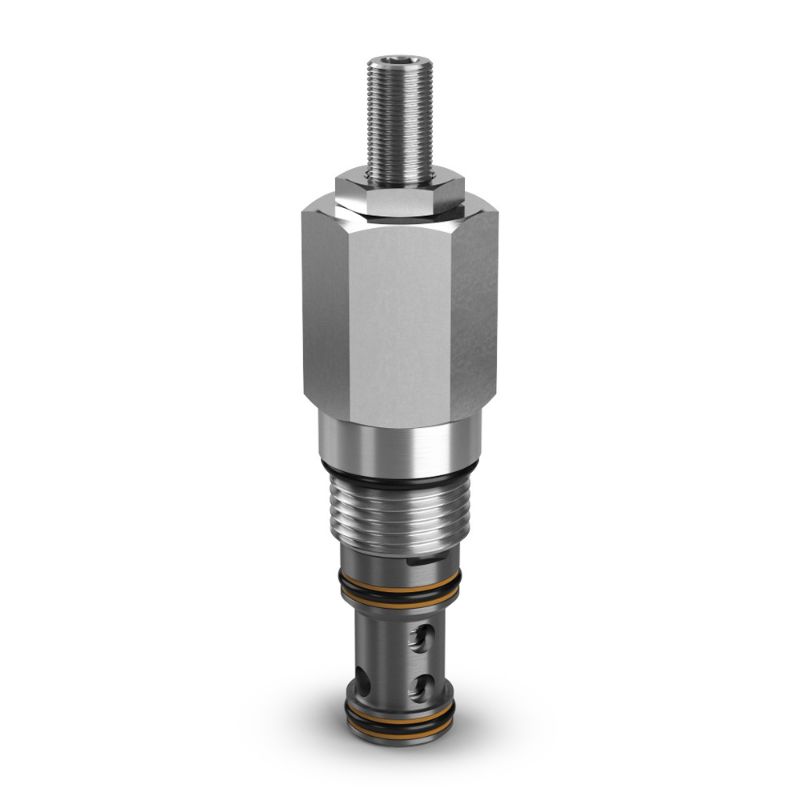

Parker B04C3HZV - Pilot Operated Sequence Valve with Kickdown

REGIONAL - Parker’s kick-down pilot operated sequence valve is a hydraulic fuse used to unload flow once the pressure setting is reached, resets when all flow is removed. Capable of flows up to 160 lpm (42 gpm) and pressures up to 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B04C3HZV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	400	Seal Material	Fluorocarbon
Body Material	n/a	Flow Rate	42
Division	Hydraulic Valve Systems Division	Cavity Size	C10-3S
For Fluid Type	Synthetic Hydraulic Fluids	Pilot Location	Internal
Valve Material	Steel (all parts)	Operating Temperature	-15 to 400
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Maximum Operating Pressure	6000
Weight	0.55	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Maximum Pressure Setting	3000
Division	Mobile Hydraulic Systems Division Europe	Operation Type	Automatic
Adjustment Mechanism	Screw	Maximum Tank Pressure	6000
Pressure Control Range	145 to 3000	Pressure Control Sensitivity	435 psi Per Turn
Maximum Inlet Pressure Rating	6000	Leak Rate	100 cm3/min @ 1450 Psi (100 bar)
Configuration	Kick Down	Maximum Flow Rate	42
Installation Torque	37	Standard Setting Pressure	1450
Function	Pilot Operated Sequence	Drain Option	External
Seal Material	Fluorocarbon	Adjustment Mechanism	Screw
Pressure Control Range	145-3000 PSI, 10-210 BAR	Flow Rate	42 GAL/MIN, 160 L/MIN
