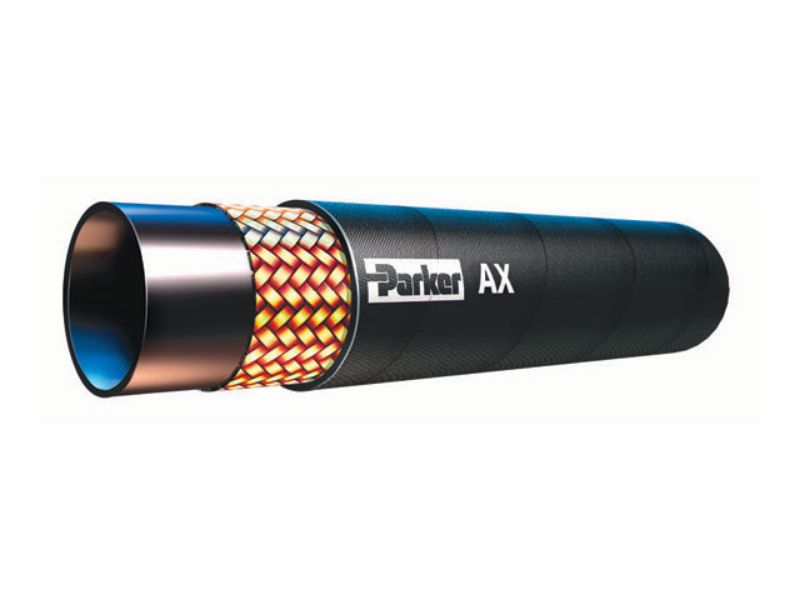

Parker AX06 - OBSOLETE: Hydraulic Industry Standard Hose 1000-3000 PSI – AX Hose

This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	190 In Stock

Brand Parker

Part No. AX06

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Operating Temperature	-40 °F	Inside Diameter	3/8 inch
Maximum Operating Temperature	212 °F	Minimum Bend Radius	2-1/2 inch
Cover Material	Synthetic Rubber	Hose Cover Type	Standard Cover
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	1 Braid of Steel Wire
Application	Petroleum Base Hydraulic Fluids	Maximum Operating Pressure	21 MPa
Nominal Hose Inside Diameter	10 mm	Weight	0.28 kg/m
Media	Lubricants	Compatible Fitting	HY Series
Specifications Met	SAE J1942	Outside Diameter	16 mm
Hose I.D. (size)	-6	UOM	FT
Material	Rubber	Inner Diameter	0.375 Inch
Working Pressure	3000 PSI (210 bar)	Pkg Qty	300
Mating Fitting Series	HY	Pkg Qty/UOM	300 FT
Mating End Fitting Series	HY	Inch/Metric	Inch
Application	Hydraulic	Hose Pressure Range	Medium
Series	AX	Parker Division	Hose Products
Inner Diameter	0.375 Inch	Parker Group	Fluid Connector
Working Pressure Range	3000 to 3999 PSI (207 to 276 bar)	Hose Category	Hydraulic Industry Standard
Inner Diameter Inch/mm	Inch	Material	Rubber

Product resources

Literature and Reference Materials

Obsolescence Notification 06142018 (PDF)
