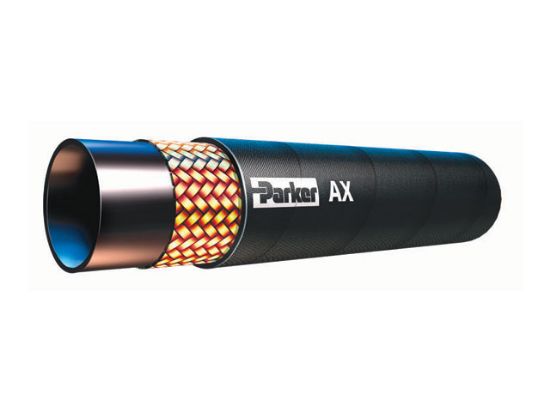

Parker AX04 - OBSOLETE: Hydraulic Industry Standard Hose 1000-3000 PSI – AX Hose

This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AX04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40
Minimum Bend Radius	2	Inside Diameter	1/4
Outside Diameter	0.500	Cover Material	Synthetic Rubber
Hose Cover Type	Standard Cover	Hose Inner Tube Material	Synthetic Rubber
Hose Reinforcement Material	1 Braid of Steel Wire	Application	Lubricating Oils
Maximum Operating Pressure	3000	Media	Lubricants
Nominal Hose Inside Diameter	6	Compatible Fitting	HY Series
Specifications Met	SAE J1942	Weight	0.15
Maximum Operating Temperature	100	Hose I.D. (size)	-4
Inner Diameter	0.25 Inch	Working Pressure	3000 PSI (210 bar)
Pkg Qty	300	Mating Fitting Series	HY
Pkg Qty/UOM	300 FT	UOM	FT
Material	Rubber	Inch/Metric	Inch
Application	Hydraulic	Parker Group	Fluid Connector
Hose Pressure Range	Medium	Parker Division	Hose Products
Series	AX	Working Pressure Range	3000 to 3999 PSI (207 to 276 bar)
Hose Category	Hydraulic Industry Standard	Material	Rubber
Inner Diameter	0.25 Inch	Inner Diameter Inch/mm	Inch
Mating End Fitting Series	HY

Product resources

Literature and Reference Materials

Obsolescence Notification 06142018 (PDF)
