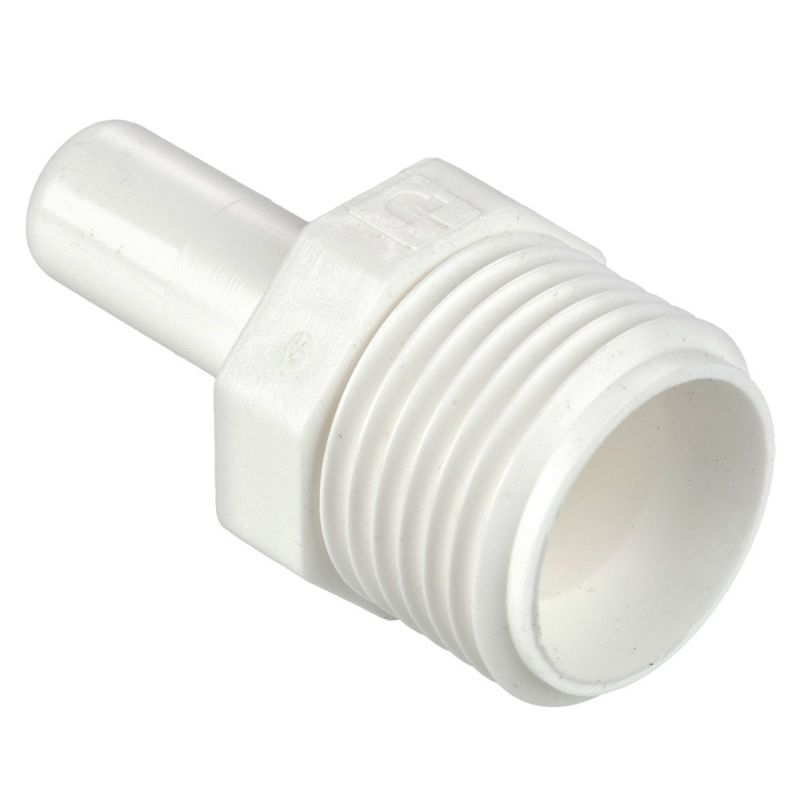

Parker AW6TAF8-MG - Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal

Parker's TrueSeal push-in tube fittings are manufactured from FDA compliant materials and are NSF-51 listed for contact with food. Gray acetal fittings meet NSF-61 requirements for potable water.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AW6TAF8-MG

$2.42/each

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	NSF/ANSI/CAN 61
Seal Material	EPDM (O-Ring)	Maximum Operating Pressure	20 bar
Division	Fluid System Connectors Division	Maximum Operating Temperature	180 °F
Body Material	Acetal	Minimum Operating Temperature	-29 °C
Connection 2 Size	1/2"-14	Connection 1 Size	3/8"
Color	White	Body Material	Acetal
Configuration	Tube Stem to Pipe	Connection 1 Type	Tube Stem
Product Style	Tube Faucet Adapter	Connection 2 Type	UNS-2A Straight
