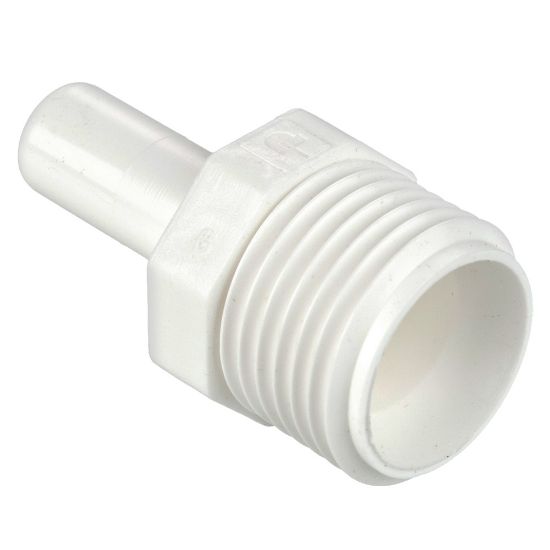

Parker AW6TAF7-MG - Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal

Parker's TrueSeal push-in tube fittings are manufactured from FDA compliant materials and are NSF-51 listed for contact with food. Gray acetal fittings meet NSF-61 requirements for potable water.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AW6TAF7-MG

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Maximum Operating Pressure	300 psi
Minimum Operating Temperature	-29 °C	Seal Material	EPDM (O-Ring)
Maximum Operating Temperature	82.2 °C	Specifications Met	NSF/ANSI/CAN 61
Body Material	Acetal	Connection 1 Size	3/8"
Connection 2 Size	7/16"-24	Color	White
Body Material	Acetal	Configuration	Tube Stem to Pipe
Connection 1 Type	Tube Stem	Product Style	Tube Faucet Adapter
Connection 2 Type	UNS-2A Straight
