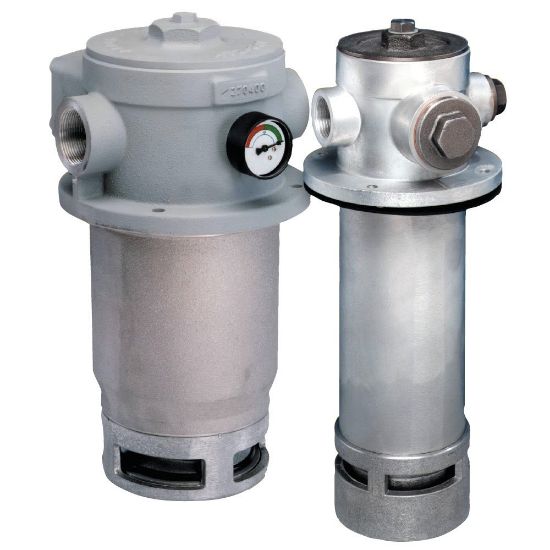

Parker ATZ2040WBU2XR481 - Tank Mounted Suction Filter - ATZ Series

ATZ Series Suction Filters.
Submersible (under oil level) tank-wall mounted suction line filters containing a valve that closes automatically before changing the element.
Maximum flow 300 l/min.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ATZ2040WBU2XR481

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hydraulic & Industrial Process Filtration Division EMEA	Operating Temperature	-40 to 100
Bypass Valve Pressure Rating	No Bypass	Mounting Type	Tank Mounted
Housing Material	Aluminium	Pressure Rating	n/a
Flow Rate	300	Port Type	2½"SAE-3000psi + 2 x G1½
Seal Material	Nitrile	Micron Rating	40 µm
Filter Element Type	040W Wiremesh	Flow Rate	0 to 200 l/min
Options	2½''SAE with blind flange	Indicator Type	Visual -0,30 bar
Connection Type	2½"SAE-3000psi + 2 x G1½
