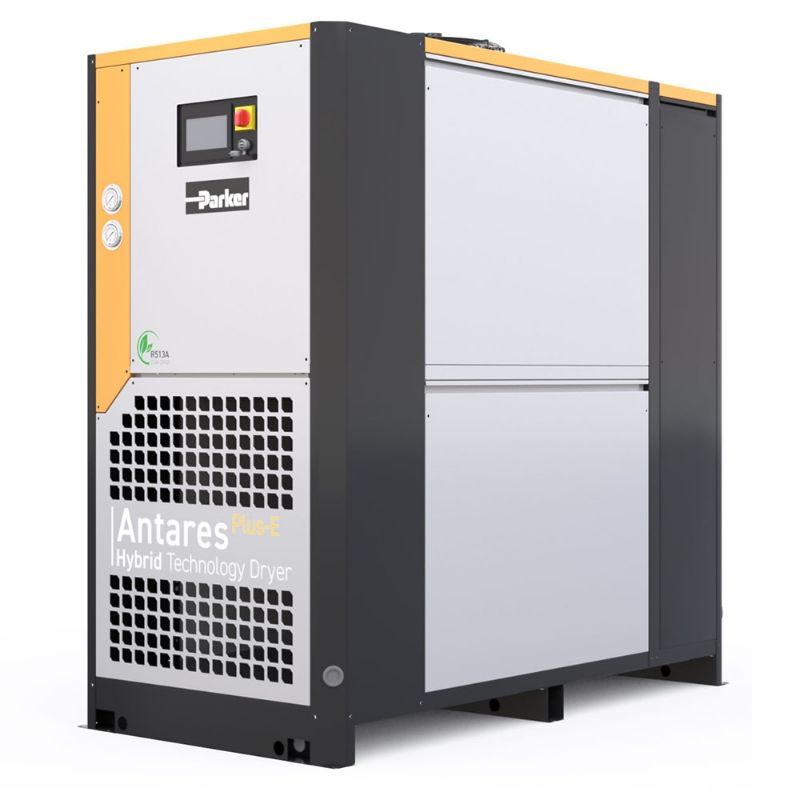

Parker ATT140+A40035012EITS - Antares Plus-E Green Hybrid Technology Low Energy Compressed Air Dryer

Green, low energy Hybrid Technology dryers for compressed air applications in industrial and processing markets. Providing volume flows up to 2040 m³/h @ 7 bar g at a dew point of -40°C (-20°C and -70°C options available).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ATT140+A40035012EITS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Division	Gas Separation and Filtration Division EMEA
Port Size	2 inch	Connection Type	BSPP
Specifications Met	PED 2014/68/EU Fluid Group II	Weight	650 kg
Industry	Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/>Electronics<br/>Pharmaceuticals<br/>Medical & Dental	ISO Grade	Standard: Class 2.2.2<br/>Options: Class 2.1.2 or Class 2.3.2
Application	Compressed Air Applications	Noise Level	< 75 dBA
Product Type	Compressed Air Dryer	Operating Pressure	4 to 12 barg
Pressure Dew Point	Standard: -40°C (-40°F)<br/>	Ambient Temperature	122.0 °F Maximum
Operating Temperature	5 to 65 °C	Ingress Protection Rating	IP44 Indoor Use Only
Refrigerant Type	R513A	Depth	1974.0 mm
Width	1180.0 mm	Height	2030.0 mm
Product Style	Hybrid Low Energy	Product Series	Antares Plus-E
Power Consumption	2.6 kW	Compatible Prefilter	OIL-X AOPX045G and AAPX045G (Included)
Compatible After Filter	OIL-X AOPX045G (Included)	Options	None
Flow Rate	840 m³/h @7 barg (494 cfm @102 psig)	Electrical Requirements	400V 3ph 50Hz
