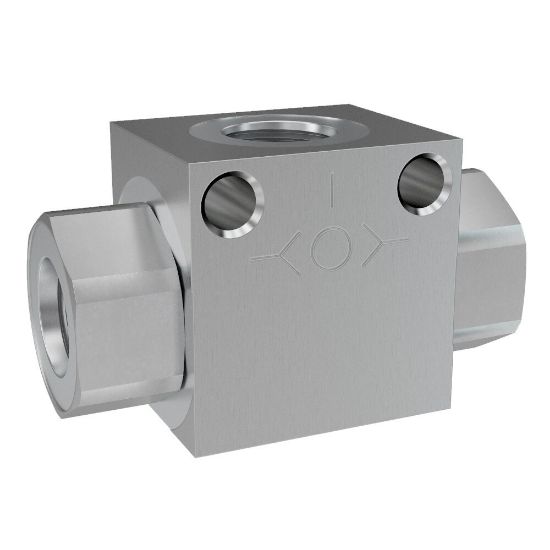

Parker ASH-04-03 - Inline Shuttle Valves

REGIONAL - Parker's ball type inline shuttle valves are plumbed external from manifolds and line bodies and are available in two flow size options of 11 lpm (3 gpm) or 22 lpm (6 gpm), and pressures up to 207 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ASH-04-03

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Leak Rate	5	Function	Shuttle
Filter Efficiency Rating	SAE Class 4	Maximum Inlet Pressure Rating	3000 psi
Flow Rate	11 L/min	Seal Material	Nitrile
Body Material	Steel	Division	Hydraulic Cartridge Systems Division
Configuration	Inline	Actuation Type	Pressure Sensing
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Maximum Flow Rate	3 Gal/min
Weight	0.8 lb	Operation Type	Automatic
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Operating Pressure	3000 psi
Maximum Operating Temperature	121 °C	Operating Temperature	-34 to 121 °C
Flow Rate	3 GAL/MIN, 11 L/MIN
