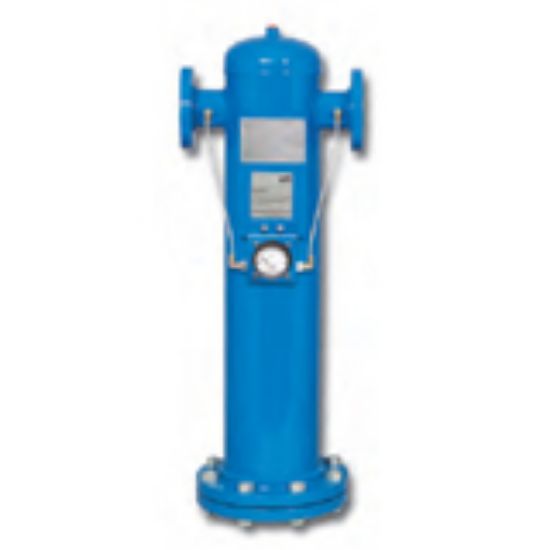

Parker ALF3-0128-HEC - Higher Flow Rate ASME Code Compressed Air Filters 3IN to 10IN Line Size

Parker Balston higher flow rate ASME code stamped compressed air filters offer high efficiency coalescing filtration at very high flow rates.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ALF3-0128-HEC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Balston	Port Type	Flange
Maximum Flow Rate	1500 CFM	Maximum Operating Pressure	17.2 barg
Mounting Position	Line Mount	Filter Efficiency Rating	99.97 %
Drain Port Size	1/2 inch	Micron Rating	0.01 MICRON
Maximum Operating Temperature	107 °C	Division	Industrial Gas Filtration and Generation Division
Filter Type	Coalescing	Weight	86 kg
Compatible Element	510-28-HEC	Width	16 inch
Height	43.1 inch	Port Size	3 inch
Materials of Construction	Body: Carbon Steel, Paint: Epoxy Enamel (Gray), Internals: Epoxy powder painted carbon steel, Seals: Single element vessel-Inorganic flange gasket/ Multi element vessel-Fluorocarbon o-ring, Internal Coating: Epoxy enamel	Filtration Efficiency	99.97%
Maximum Flow Rate (cfm)	1500	Port Connection (inch)	3
Port Connection Type	Flange	Mounting Position	Line Mount
