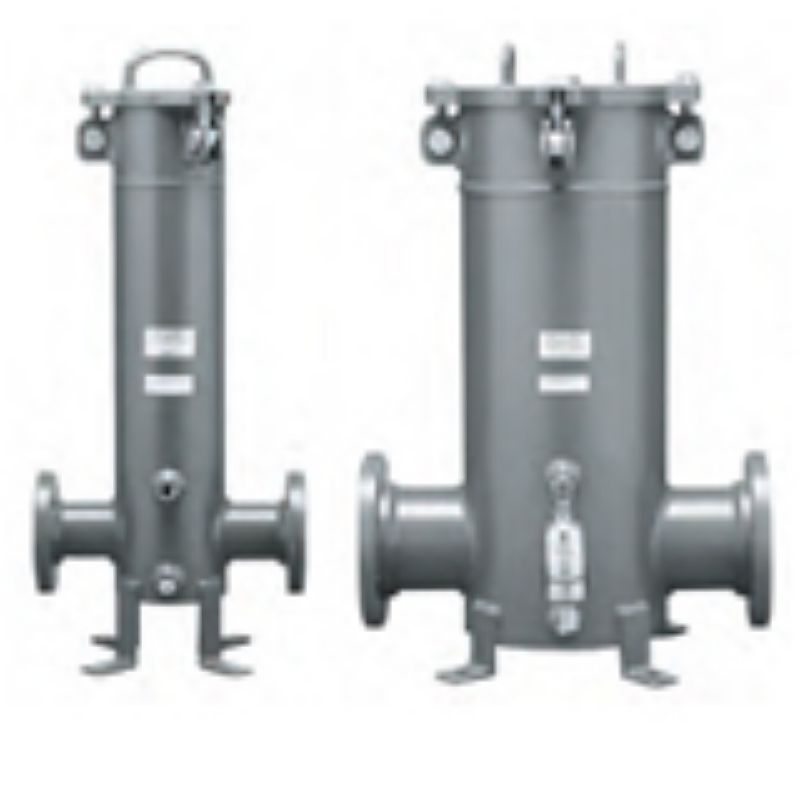

Parker AKC-1480-BX - Sterile Air Filters 3IN to 10IN Line Size

Parker Balston sterile air filters for the food industry remove all viable organisms from compressed air and other gases at an efficiency of 99.9999+% for 0.01 micron sized particles.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AKC-1480-BX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	Flange	Width	34 inch
Minimum Operating Temperature	-100 °C	Port Size	8 inch
Micron Rating	0.01 MICRON	Drain Port Size	1/2 inch
Weight	590 lb	Filter Type	Coalecsing
Division	Industrial Gas Filtration and Generation Division	Height	1371 mm
Materials of Construction	Carbon steel with 303 Stainless Steel Filter tube holder & Buna N seals.	Compatible Element	200-80-BX
Maximum Operating Pressure	200 psig	Maximum Operating Temperature	250 °F
Brand	Balston	Maximum Flow Rate	30582 m3/min
Maximum Flow Rate (cfm)	18000	Port Connection (inch)	8
Filtration Efficiency	99.99%
