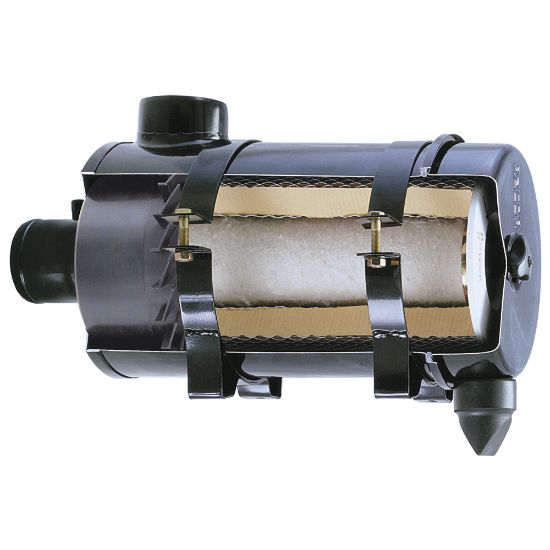

Parker AFSF4 - Cartridge Engine Air Filters – Racor ECO, AF, and EA Series

Racor Cartridge Engine Air Filters ensure delivery of clean, purified air into gasoline and diesel engines. They come available with a wide range of flow rate and mounting options, making them suitable for use in any engine or application.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AFSF4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Position	Horizontal	Product Series	Cartridge Air
Outlet Connection Size	6.4 cm	Output Power	22 to 60 kW
Accessories Included	See literature on Product Support tab	Division	Engine Mobile Original Equipment Division
Compatible Mounting Clamp	Included	Brand	Racor
Inlet Connection Size	6.4 cm	Length	38.6 cm
Application	Mobile and stationary gas and diesel engines	For Fluid Type	Engine Air
Compatible Element	Primary: AR6060<br/>Safety: AS6121	Outside Diameter	6.6 inch
Flow Range	53 to 159 cfm (1.5 to 4.5 m3/m)	Filter Element Type	Primary Air and Safety Filters
Materials of Construction	Coated Steel	Pre-Cleaner	Static Vane
Connection Type	Straight	Application	Heavy Dust
Maximum Flow Rate	200 cfm (6 m3/m)
