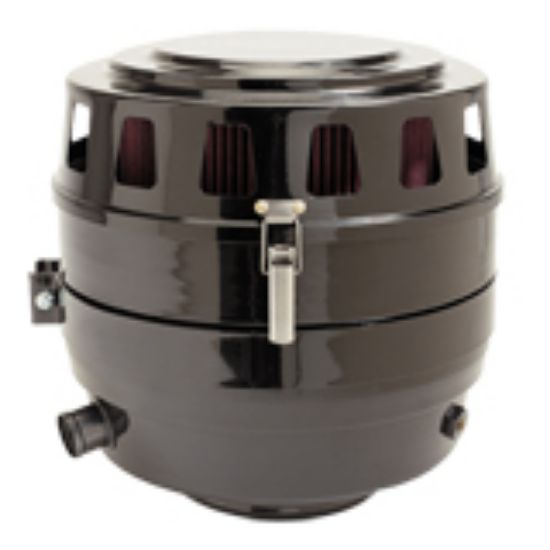

Parker AFM601212 - Marine Cartridge Engine Air Filters / Silencers – Racor AFM Series

Racor AFM Series Marine Air Filters / Silencers improve engine performance by removing airborne contaminants present inside and outside the vessel. The unique design of the filter also reduces turbo noise and can be serviced without tools.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AFM601212

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	1600	Weight	8
Length	12.5	Outlet Connection Size	6
Materials of Construction	Coated Steel	Operating Temperature	-40 to 120
Diameter	13.5	Related Parts	Crank Case Ventilator CCV8000
For Fluid Type	Engine Air	Connection Size	1.3 inch O.D. Hose Barb for CCV
Product Series	Marine Cartridge Engine Air filters	Compatible Element	AFM8060
Division	Engine Mobile Original Equipment Division	Accessories Included	Cleaning Kit AFM82006
Application	Marine Engines	Brand	Racor
Maximum Flow Rate (cfm)	1600	Outlet Size (inch)	6.0

Product resources

Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--AF M --RSL0395 (PDF)
