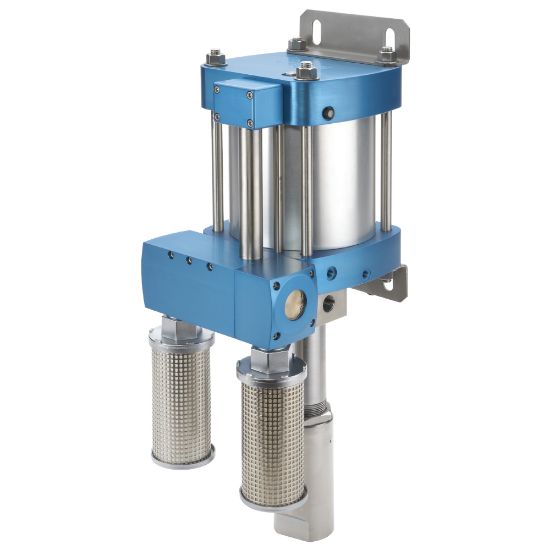

Parker AFL35-1DBCPE - Liquid Pump, Double-Acting Single Ended - AFL Series

Note: This product is no longer available - please refer to the "Product Support" or "Recommended products" section of this page for details on any alternative products, or contact us for further assistance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AFL35-1DBCPE

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Outlet Pressure Rating	5600	Shipping Weight	n/a
Pressure Rating	15 to 150	Liquid Outlet Port Size	SF562CX10
Division	Instrumentation Products Division	Supply Air Inlet Port Size	NPTF 3/4
Minimum Operating Temperature	-18 to 60	Liquid Inlet Port Size	NPTF
Displacement per Stroke	6.02	Pilot Air Inlet Port Size	NPTF
Seal Type	UHMWPE U-Cup with EPDM O-rings	Piston Air Drive	Single
Isolation Chamber	Included	Liquid Inlet Location	Bottom
Pressure Ratio (Air/Water)	1:39
